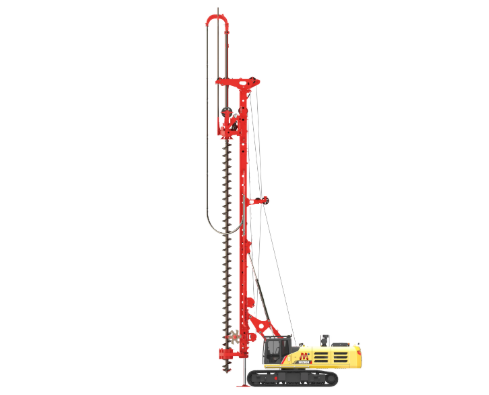

When it comes to heavy-duty foundation work, the SR285R-MIII Rotary Drilling Rig leads the way. Its 2200mm maximum pile diameter, 94/61m drilling depth, and 105T operating weight make it the ultimate choice for challenging construction environments.
Parameters
CFA Mode
Crowd Force – /kN
Stroke – 18300mm
Overall Height – 33075mm
Max. Pile Diameter – 1200mm
Max. Pile Depth – 25.5m
Operating Weight – 108T
Line Pull – 1000kN
Rated Speed – 5~24rpm
Rated Output Torque – 285kN·m
Standard Mode
Crowd Force – 260kN
Stroke – 17100mm
Overall Height – 25470mm
Max. Pile Diameter – 2200mm
Max. Pile Depth – 94/61m
Operating Weight – 105T
Line Pull – 355kN
Rated Speed – 5~24rpm
Rated Output Torque – 285kN·m
Main Chassis
Base Engine – 6WG1
Engine Power – 300/1800kW/rpm
Emission Regulation – China Stage III
Low Headroom
Crowd Force – 260kN
Stroke – 4600mm
Overall Height – 11655~13280mm
Max. Pile Diameter – 2200mm
Max. Pile Depth – 50m
Operating Weight – 96T
Line Pull – 355kN
Rated Speed – 5~24rpm
Rated Output Torque – 285kN·m
Overall Machine
Transport Width – 3475mm
Transport Height – 3625mm
Main Winch
Lifting Capacity – 330kN
Max. Line Speed – 70m/min
Rope Diameter –36mm
For more information:-
+971525384269
Features:
- The preferred model in the field of soil and rock layer construction, smooth compound movement control, adjustable torque and rotation speed of rotary drive, suitable for different kinds of geological conditions and construction methods.
- Engines collaboratively developed with world’s leading suppliers fully meet Tier IV/ III emission regulations, offering long lasting, stable and reliable power output with low fuel consumption.
- 15m extra-long stroke, featuring fast crowding and pulling function, suitable for long casing construction in beach, pebble, backfill formation.
- Real-time display the location of the locking device while using the inter-lock Kelly bar, avoiding accidental damage.
- The wire rope is always tensioned while working, extending the service life of it.
- HD touch screen, 3ms refresh frequency, smooth animation display.
- Grease qualitatively and regularly, keeping the machine in well-lubricated state.
