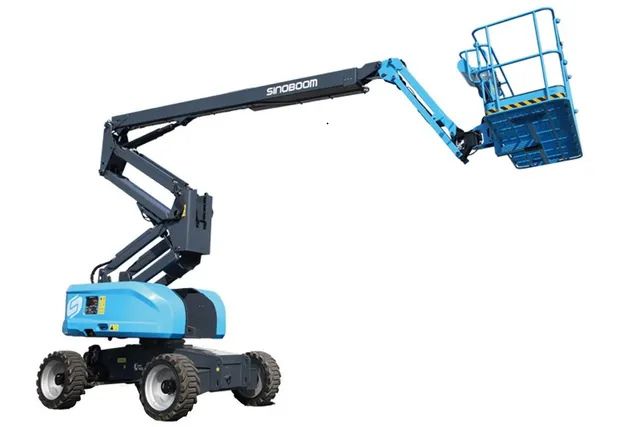

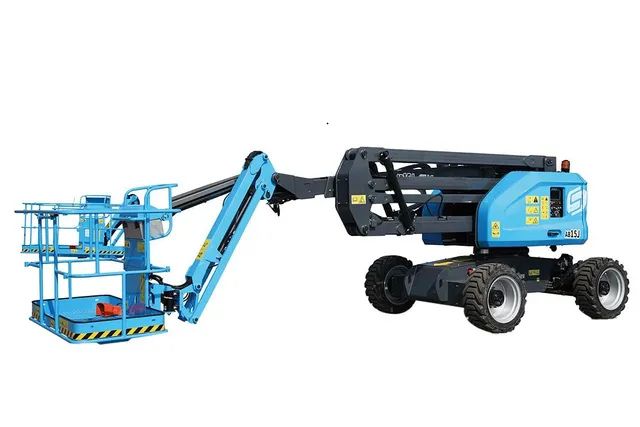

Engineered for accurate performance and ease of use, the Sinoboom AB15J articulating boom lift offers a maximum working height of 16.7 meters. Its narrow frame and zero tail swing make it perfect for accessing hard-to-reach areas in tight workspaces. The platform functions independently of the secondary arm, enabling direct height adjustments. With a straightforward linkage design and hydraulic leveling system, the AB15J delivers reliable operation. The lift is equipped with three joysticks that provide variable proportional control, allowing for fine-tuned maneuverability. Suitable for both indoor and outdoor projects, it’s an excellent choice for construction, repairs, and facility maintenance.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
