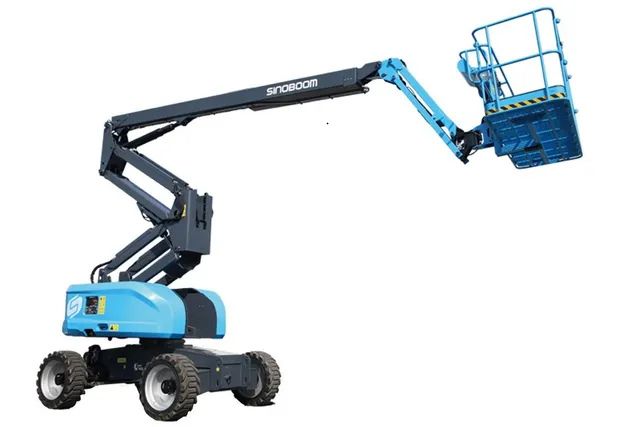

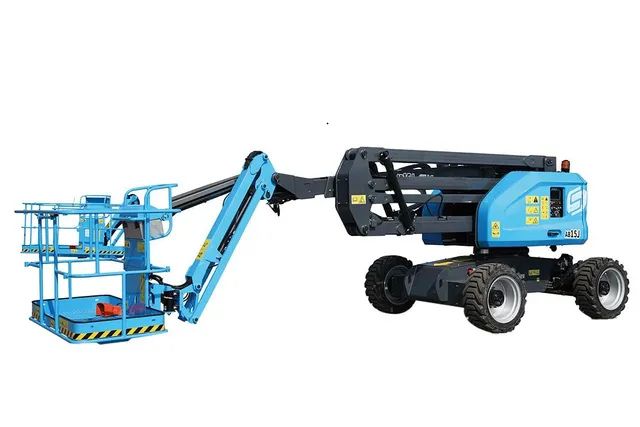

The Sinoboom AB15J is a powerful articulating boom lift built to offer precise control and efficient operation, with a working height of up to 16.7 meters. Its slim profile and zero tail sweep design make it well-suited for use in confined workspaces. The platform can be raised or lowered smoothly without needing to move the secondary arm. A straightforward linkage structure and hydraulic leveling mechanism guarantee consistent performance. Equipped with three joysticks featuring variable proportional control, it provides highly responsive and accurate handling. Suitable for both indoor and outdoor use, the AB15J excels in construction, repair, and facility maintenance tasks.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
