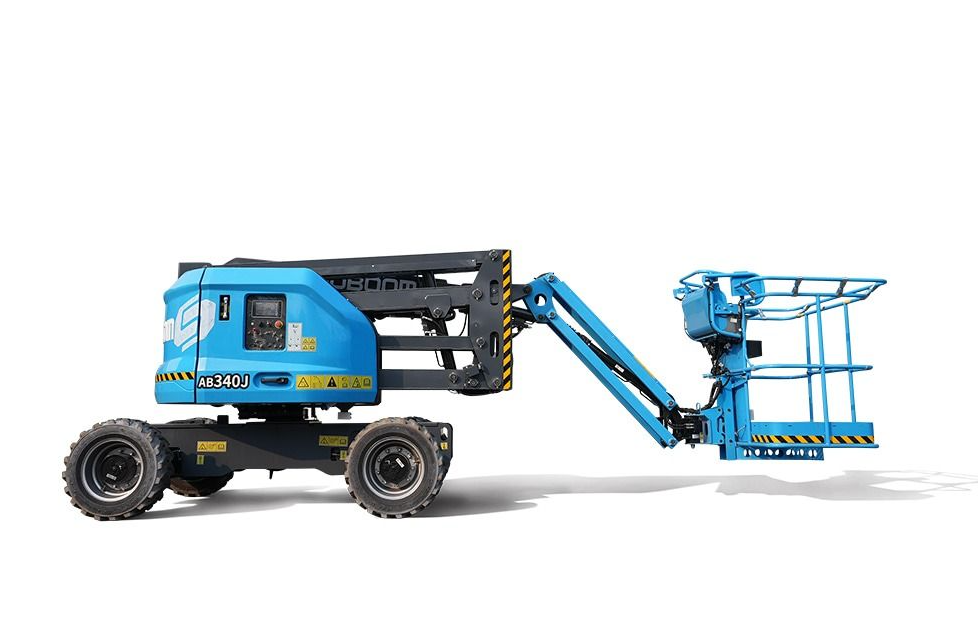

The Sinoboom AB10J articulated boom lift is designed for tough job sites and urban environments, offering exceptional off-road performance with 4-wheel drive, 40% gradeability, and an active oscillating axle. With a 250 kg platform capacity, it comfortably supports two operators and their tools, boosting on-site productivity. Its compact design and weight of under 5 tons make it easily transportable using standard trucks — ideal for confined urban spaces and hard-to-reach locations. A higher tilt angle allows stable operation on uneven terrain. The advanced HMI system features intuitive fault detection and tool-free calibration, minimizing downtime and simplifying maintenance.

Key Features:

• Compact & Easy to Transport

• Lightweight: Under 5 Tons

• Quick Diagnostics: One-Button Fault Detection

  Reference Number: AMH269
  Working hours: 0 hrs
  Operating weight (kg): 4,990 Kg
  Engine Output: 18.2 kW
  Max Number of Operators: 2
  Working Height: 12.38 m
  Platform Capacity: 250 kg
  Telematics: Available
  Max Horizontal Extension: 5.9 m
  Power: Diesel
  Drive × Steer: 4WD × 2WS
  Turntable Rotation: 355 ° non-continuous
  Platform Rotation: 160°
  Gradeability: 40%
