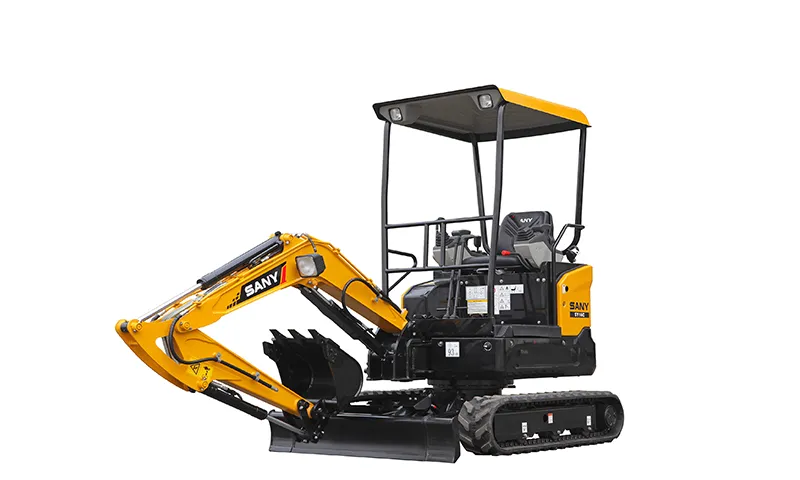

Engineered for strength and precision, this mini excavator has passed rigorous field and component endurance testing. Its compact design with zero tail swing, swing boom, and adjustable undercarriage makes it ideal for confined worksites. The hydraulic system intelligently balances pump and engine performance for smooth operation. With 1.92 tons of weight, a 0.04m³ bucket, and 16.6 kN digging force, it’s a dependable choice for challenging jobs.

Features:

Superior Adaptability

• Zero tail, retractable undercarriage, and swing boom make operating in corners and other tight spaces easier.

Easy Operation

• The load-sensitive hydraulic system accurately matches the engine with the main pump for smooth movement coordination.

Strong Power

Exclusive Yanma high-power engine, digging, and walking are more powerful.

Parameters:

Arm Digging Force: 10kN
Bucket Capacity: 0.04m³
Bucket Digging Force: 16.6kN
Engine Displacement: 0.854L
Engine Model: Yanmar 3TNV70
Engine Power: 10.3kW
Fuel Tank: 20L
Hydraulic Tank: 21L
Operating Weight: 1.92T
Radiator: 5.4L
Standard Boom: 1.81m
Standard Stick: 1.13m
Thrust Wheel on Each Side: 3
