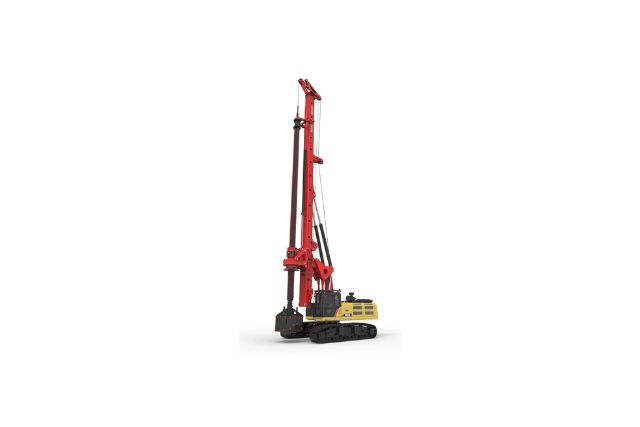

Features

High-Speed Drilling, Maximum Accuracy

Engineered for small-diameter and deep borehole projects, this rig offers rapid hoisting speeds and precise vertical alignment to boost efficiency in civil construction.

Stable and Reliable Platform
With a telescopic wide-track chassis and a large roller-type slewing bearing, it ensures excellent stability during deep drilling operations.

Fuel-Efficient Performance
Powered by a large-displacement EFI engine that intelligently manages power output for reduced fuel use and faster operational response.

Parameters

Main Chassis

Base Engine: ISUZU 6UZ1

Engine Power: 257/2000kW/rpm

Emission Regulation: China Stage III

Rotary Drive

Rated Speed: 5~32rpm

Rated Output Torque: 235kN·m

Pile

Max. Pile Diameter: 2000mm

Max. Pile Depth: 68/52m

Crowd System

Crowd Force: 210kN

Stroke: 5000mm

Line Pull: 270kN

Overall Machine

Overall Height: 22870mm

Operating Weight: 81T

Transport Width: 3540mm

Transport Height: 3660mm

Main Winch

Price: AED 1,900,000

Request for quote: +971525384269
