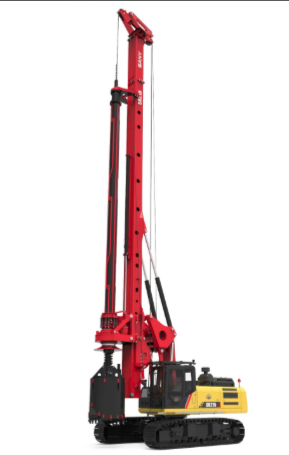

Specially designed for civil engineering needs, this rig ensures fast hoisting, strong verticality, and efficiency. A wide telescopic chassis and roller slewing bearing provide stability during deep drilling. Equipped with a fuel-efficient EFI engine, it balances power and savings. The box mast resists fatigue, while the sixth-generation Kelly bar strengthens drilling force. Operators benefit from an HD touchscreen with simple, responsive controls.

Parameters

Main Chassis

• Base Engine- Isuzu 6HK1
• Engine Power- 212/2000kW/rpm
• Emission Regulation- China Stage Ⅲ

Rotary Drive

• Rated Speed- 5~30rpm
• Rated Output Torque- 220kN·m

Pile

• Max. Pile Diameter- 1800mm
• Max. Pile Depth- 64/51m

Crowd System

• Crowd Force- 180kN
• Stroke- 4200mm
• Line Pull- 190kN

Overall Machine

• Overall Height- 21040mm
• Operating Weight- 65T
• Transport Width- 3210mm
• Transport Height- 3560mm

Main Winch

• Lifting Capacity- 220kN
• Max. Line Speed- 75m/min
• Rope Diameter- 28mm

Price: 2500000 AED
