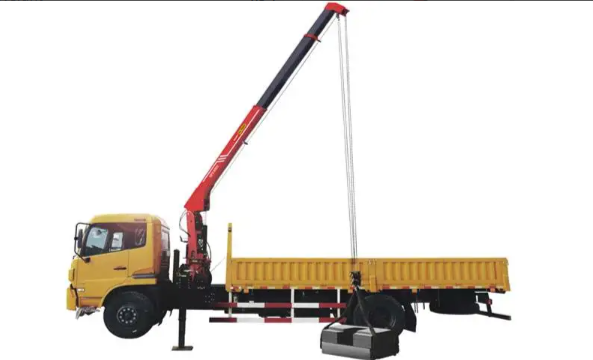

Engineered for operator comfort and safety, this crane blends ergonomic design with strength. Its modular build with standardized connections ensures easy maintenance. Accurate control functions support precise lifting and multiple simultaneous operations. A high-pressure filter is included to protect hydraulic parts and extend longevity. With proven UV resistance and attractive appearance, it delivers both performance and aesthetics.

Parameters

• Boom Length- 3.5-10.4m
• Length of the Basic Boom- 3.5 m
• Length of the Fully Extended Boom- 10.4 m
• Max. Lifting Capacity- 3.6T
• Max. Lifting Height- 12.5m
• Max. Outreach- 10.2m
• Numbers of the Boom- 3 or 4
• Operating Mode- Lower seat
• Outrigger Span- 4.4 (m)
• Overall Weight- 1.3T
• Range of the Boom Lifting Angle- 0~75°
• Rated Lifting Moment- 8mt
• Rated Lifting Weight- 3.2T
• Recommended Volume for the System- 30-40 L/min
• Slewing Angle- Endless

Price: 700000 AED
