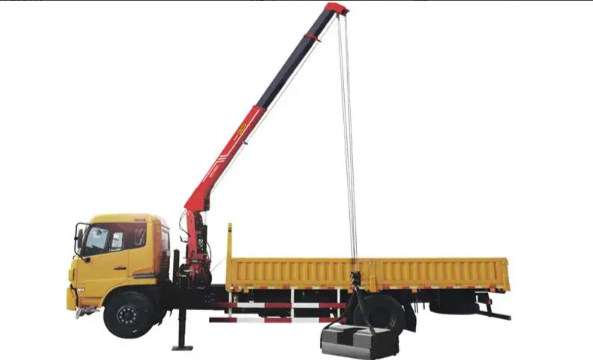

Operator safety and comfort are ensured through ergonomic design. This crane has a robust, easy-to-maintain build using modular interfaces. Its sensitive control system delivers accurate positioning and smooth multi-function capability. The hydraulic system is protected with a high-pressure filter to extend its working life. Offering superior durability, UV resistance, and modern styling, it excels in both performance and looks.

Parameters

• Boom Length- 3.5-10.4m
• Length of the Basic Boom- 3.5 m
• Length of the Fully Extended Boom- 10.4 m
• Max. Lifting Capacity- 3.6T
• Max. Lifting Height- 12.5m
• Max. Outreach- 10.2m
• Numbers of the Boom- 3 or 4
• Operating Mode- Lower seat
• Outrigger Span- 4.4 (m)
• Overall Weight- 1.3T
• Range of the Boom Lifting Angle- 0~75°
• Rated Lifting Moment- 8mt
• Rated Lifting Weight- 3.2T
• Recommended Volume for the System- 30-40 L/min
• Slewing Angle- Endless

Price: 700000 AED

For More Information

Call us Now: +971 525384269
