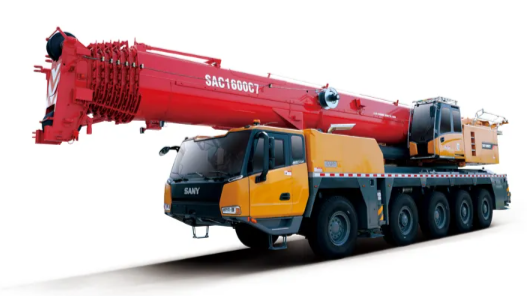

Compact in design with enhanced suspension and steering, this crane is tailored for versatile jobsites. It includes adjustable jib and counterweight combinations to fit various lifting tasks. The single-cylinder pin allows flexible boom setups, and the crane can travel with counterweights onsite to save transport costs.

Parameters

Operation

• Counterweight- 53T
• Max. Lifting Capacity- 160T
• Max. Boom Length- 74.8m
• Max. Jib Length- 34m
• Max. Lifting Height- 103m
• Max. Lifting Moment- 5174kN·m

Traveling

• Available Districts- Outside Europe & USA
• Engine Model (Emission Standard)- DF Cummins QSZ13-C525-30 (EU Stage ⅢA)
• Max. Gradeability- 46%
• Max. Traveling Speed- 80km/h
• Wheel Formula- 10×6×10

Price: 1350000 AED

For More Information

Call Us Now: +971 525384269
