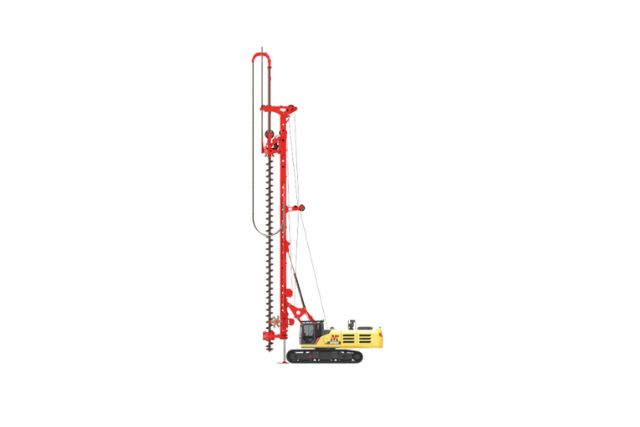

The SANY SR285R-MIII is the ultimate solution for deep foundation drilling. With advanced rotary technology and a long-stroke system, it tackles complex formations easily. The Tier IV-compliant engine ensures low emissions and great fuel economy. Operators get full control with a modern, intelligent interface. Suitable for heavy-duty piling and infrastructure jobs. This rig delivers where it matters most.

Parameters

Standard Mode

Crowd Force: 260kN

Stroke: 17100mm

Overall Height: 25470mm

Max. Pile Diameter: 2200mm

Max. Pile Depth: 94/61m

Operating Weight: 105T

Line Pull: 355kN

Rated Speed: 5~24rpm

Rated Output Torque: 285kN·m

Main Chassis

Base Engine: 6WG1

Engine Power: 300/1800kW/rpm

Emission Regulation: China Stage III

Overall Machine

Transport Width: 3475mm

Transport Height: 3625mm

Main Winch

Lifting Capacity: 330kN

Max. Line Speed: 70m/min

Rope Diameter: 36mm

Price: AED 311000

Request for quote: +971525384269
