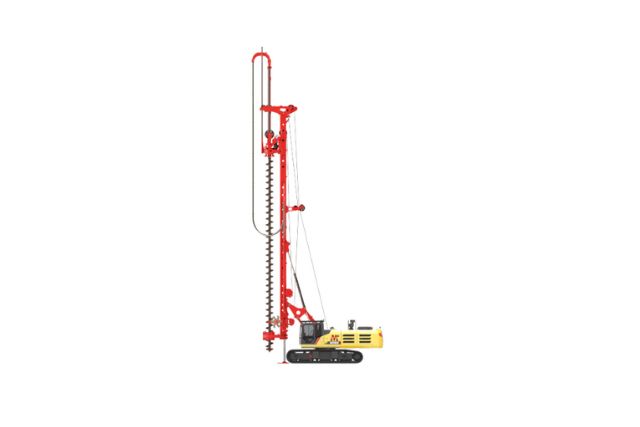

When precision and strength are key, the SANY SR285R-MIII Rotary Drilling Rig rises to the challenge. This 2025 model features cutting-edge rotary drive and a 15m crowd stroke system. Its engine meets Tier IV regulations, balancing eco-friendliness and output. A smart control system offers real-time torque and speed adjustments. It’s ideal for deep piling and large-scale foundation works. Expect consistent, high-level performance from SANY.

Parameters

Standard Mode

Crowd Force: 260kN

Stroke: 17100mm

Overall Height: 25470mm

Max. Pile Diameter: 2200mm

Max. Pile Depth: 94/61m

Operating Weight: 105T

Line Pull: 355kN

Rated Speed: 5~24rpm

Rated Output Torque: 285kN·m

Main Chassis

Base Engine: 6WG1

Engine Power: 300/1800kW/rpm

Emission Regulation: China Stage III

Overall Machine

Transport Width: 3475mm

Transport Height: 3625mm

Main Winch

Lifting Capacity: 330kN

Max. Line Speed: 70m/min

Rope Diameter: 36mm

Price: AED 311000

Request for quote: +971525384269
