Features

Efficient and Versatile

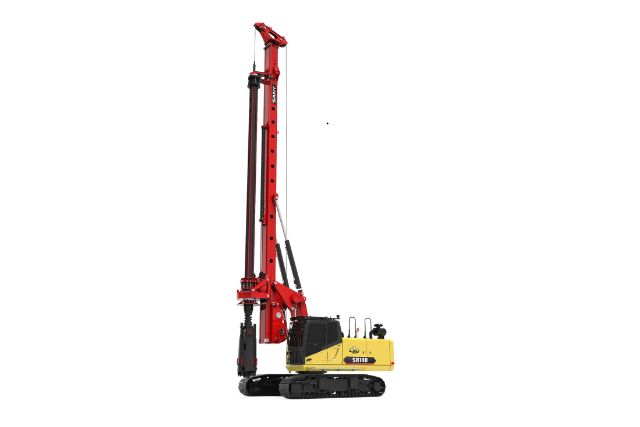

Widely used in civil engineering, this rig is ideal for small-diameter and deep borehole drilling. It features fast hoisting speeds, excellent vertical precision, and high operational efficiency.

Advanced Chassis Design
Equipped with a telescopic, widened chassis tailored for rotary drilling, combined with a large-diameter roller slewing bearing to ensure superior stability during deep drilling operations.

Cost-Effective and Energy Efficient
Powered by a high-displacement imported EFI engine, the system uses intelligent power optimization to adjust energy distribution in real time, offering quick response, improved fuel economy, and reduced energy consumption.

Parameters

Main Chassis

Base Engine: ISUZU 4HK1

Engine Power: 133/2000kW/rpm

Emission Regulation: China Stage III

Rotary Drive

Rated Speed: 6～45rpm

Rated Output Torque: 140kN·m

Pile

Max. Pile Diameter: 1300/1500mm

Max. Pile Depth: 45/36m

Crowd System

Crowd Force: 120kN

Stroke: 3700mm

Line Pull: 160kN

Overall Machine

Overall Height: 16490mm

Operating Weight: 37T

Transport Width: 2660/2550mm

Transport Height: 33435mm

Main Winch

Lifting Capacity: 160kN

Max. Line Speed: 80m/min

Rope Diameter: 24mm

Price: AED 1,200,000

Request for quote: +971525384269
