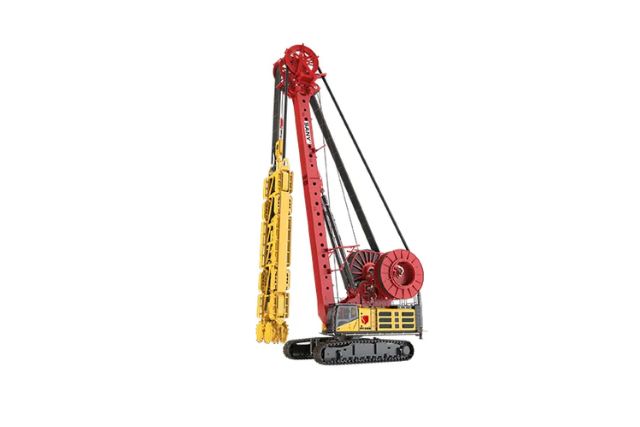

The Sany SDC120 Trench Cutter is a top-tier solution for creating precise, deep trenches in urban and industrial environments. Its powerful cutter head and strong structure provide superior stability during operations. With excellent soil removal capabilities, it speeds up excavation without sacrificing accuracy. The system is designed for minimal vibration and disturbance. Ideal for projects requiring deep diaphragm walls and foundations. The Sany 2025 SDC120 Trench Cutter is engineered for serious excavation performance.

Parameters

Engine Power: 570.5/1800kW/rpm

Grooving Depth of Single Hole: 2800mm

Grooving Thickness: 800 – 1800mm

Max. Grooving Depth: 120m

Max. Speed of Milling Wheel: 25rpm

Milling Wheel Gearbox Torque: 2×120kN·m

Mud Pump: 450m³/h

Number of Deviation Correction Devices: 12

Overall Quality: 230T

Winch Lifting Force: 2×390kN

Price: AED 1920000

Request for quote: +971525384269
