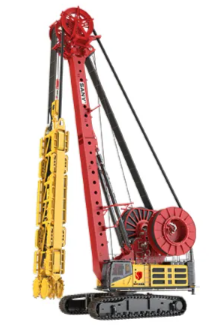

Real-time gyroscope-based deviation detection keeps the SANY SDC120 Trench Cutter aligned and precise. Its correction cylinder with large diameter and long stroke ensures powerful thrust, ideal for hard strata and significant structural adjustments. Together with automatic drilling adjustments and wear-resistant components, it’s built for superior performance and safety.

Parameters

• Engine Power- 570.5/1800kW/rpm
• Grooving Depth of Single Hole- 2800mm
• Grooving Thickness- 800 – 1800mm
• Max. Grooving Depth- 120m
• Max. Speed of Milling Wheel- 25rpm
• Milling Wheel Gearbox Torque- 2×120kN·m
• Mud Pump- 450m³/h
• Number of Deviation Correction Devices- 12
• Overall Quality- 230T
• Winch Lifting Force- 2×390kN

Price: 365000 AED

For More Information

Call Us Now: +971 525384269
