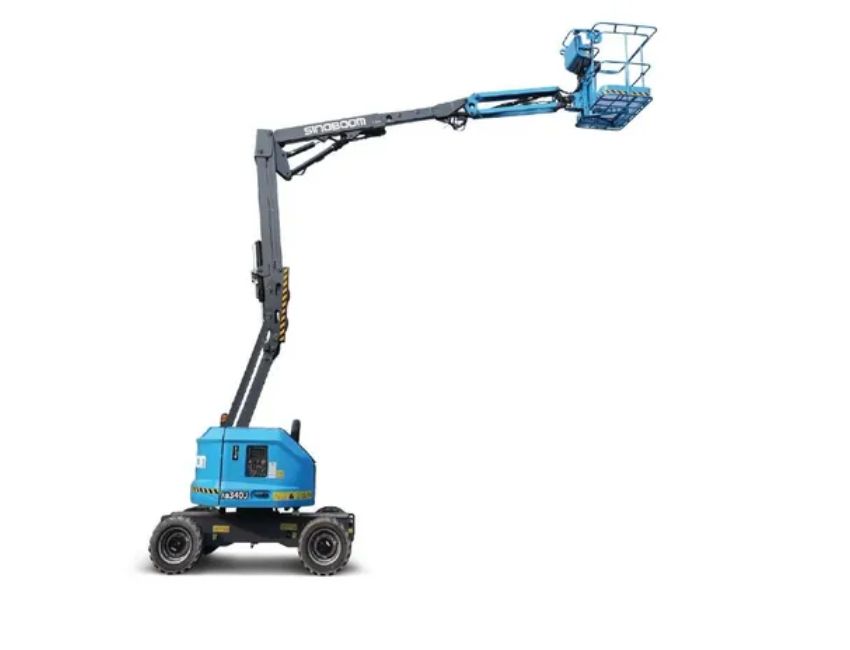

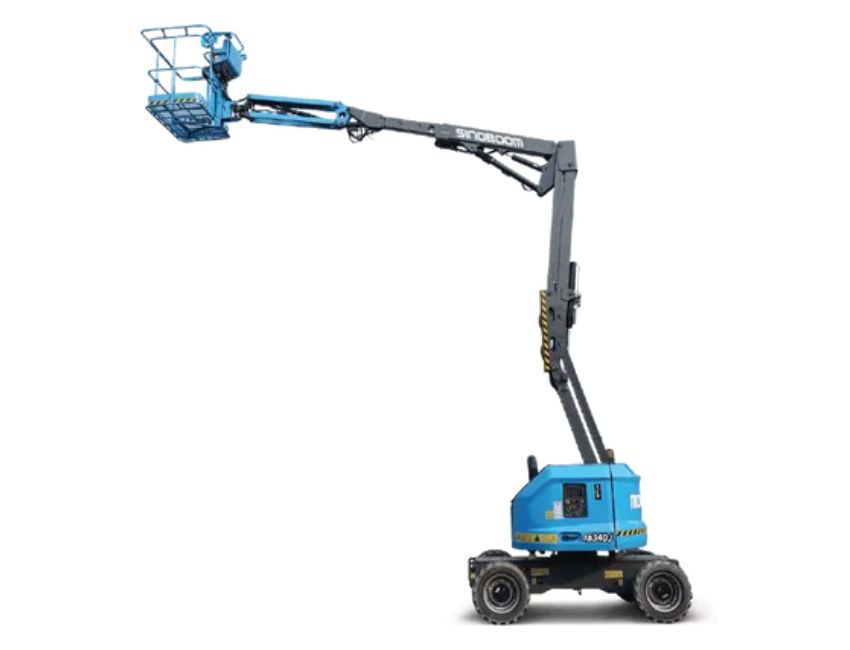

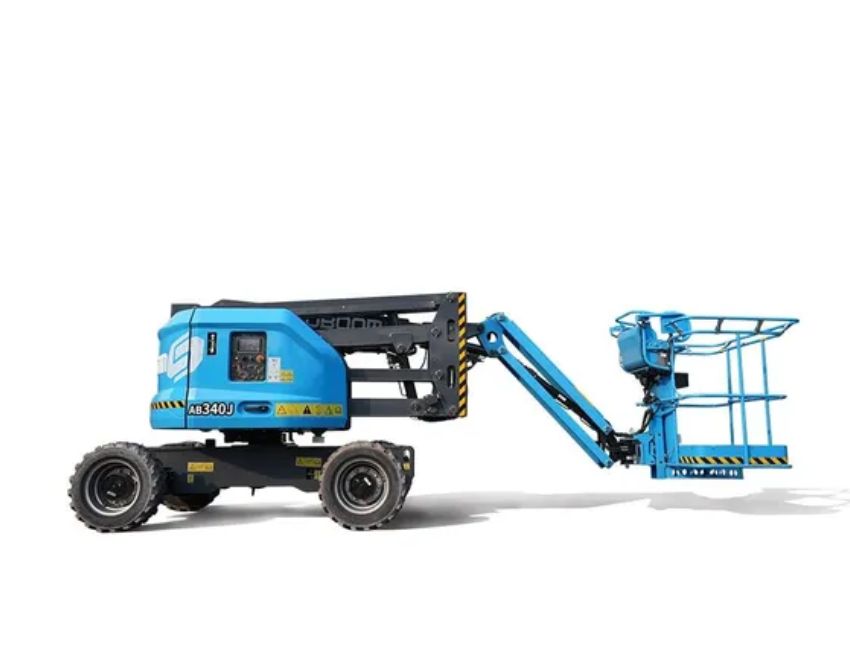

Sinoboom AB10J – Compact Design, Rugged Results
This articulated boom lift delivers stability with its oscillating function and tilt rating, while carrying up to 250 kg on the platform. Under 5 tons, it moves easily between sites and features quick HMI fault diagnosis.

Highlights:

• Lightweight Yet Reliable

• Handles Rugged Terrains with Ease

• Smart Diagnostics for Faster Service

Technical specification:

Reference Number- AMH269

Working hours- 0 hrs

Operating weight (kg)- 4,990 Kg

Engine Output- 18.2 kW

Max Number of Operators- 2

Working Height- 12.38 m

Platform Capacity- 250 kg

Telematics- Available

Max Horizontal Extension- 5.9 m

Power- Diesel

Drive × Steer- 4WD × 2WS

Turntable Rotation- 355 ° non-continuous

Platform Rotation- 160°

Gradeability- 40%

Features:

• 4WD x 2WS Proportional control

• Hydraulic platform leveling

• Tilt protection system

• Emergency lowering system

• Emergency stop system & All motion alarm

• Flashing beacon 355° non-continuous rotation

• Weighing system Anti-pinch device

• Foam-filled non-marking RT tires

• Two-speed travel motor

• Automatic engine shutdown in case of malfunction

• Swing-out engine tray

 —-Request for quote: +971525384269——–
