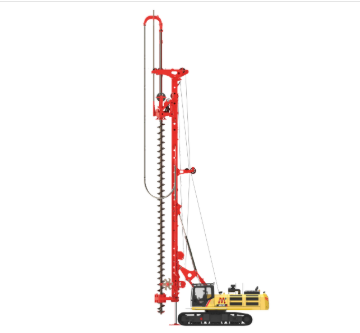

Ideal for soil and rock layer work, the SANY SR235-MIII Rotary Drilling Rig features advanced motion control with adjustable torque and rotation speed, adapting easily to varied geological conditions. Its engines, created with top global suppliers, meet Tier IV/III emission standards and offer stable, fuel-saving power. The extra-long 15m stroke accelerates crowding and pulling, suitable for casing operations in sandy or gravelly areas. The inter-lock Kelly bar shows its position in real-time, helping operators avoid errors, while the continuously tensioned wire rope ensures durability. The HD touch screen with 3ms refresh delivers smooth visuals, and regular grease maintenance keeps the machine in optimal condition.

Parameters

CFA Mode

• Crowd Force- /kN
• Stroke- 17060mm
• Overall Height- 29775mm
• Max. Pile Diameter- 1000mm
• Max. Pile Depth- 24m
• Operating Weight- 90T
• Line Pull- 770kN
• Rated Speed- 5~30rpm
• Rated Output Torque- 100~230kN·m

Standard Mode

• Crowd Force- 210kN
• Stroke- 15000mm
• Overall Height- 24050mm
• Max. Pile Diameter- 2000mm
• Max. Pile Depth- 73/56m
• Operating Weight- 86T
• Line Pull- 270kN
• Rated Speed- 5~30rpm
• Rated Output Torque- 235kN·m

Main Chassis

• Base Engine- 6UZ1
• Engine Power- 257/2000kW/rpm
• Emission Regulation- China Stage III

Low Headroom

• Crowd Force- 210kN
• Stroke- 4500mm
• Overall Height- 12135~13205mm
• Max. Pile Diameter- 2000mm
• Max. Pile Depth- 24m
• Operating Weight- 75T
• Line Pull- 270kN
• Rated Speed0- 5~30rpm
• Rated Output Torque- 235kN·m

Overall Machine

• Transport Width- 3550mm
• Transport Height- 3750mm

Main Winch

• Lifting Capacity- 235kN
• Max. Line Speed- 70m/min
• Rope Diameter- 32mm

Price: 260000 AED
