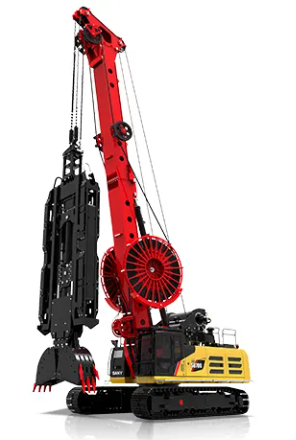

Engineered for demanding underground projects, the SANY SR235-S-DW Kelly Guided Grab’s large, heavy working device delivers powerful impact suitable for rock layers with pressures reaching 10MPa. Its bucket’s fast 9-second action increases soil handling efficiency, while its advanced winch technology ensures rapid operations. The gantry push plate’s alignment is continuously monitored and corrected through gyroscope-based real-time adjustments, achieving perpendicularity at a tolerance of 1‰ for safer and more precise drilling.

Parameters

Main Chassis

• Base Engine- 6UZ1
• Engine Power- 257/2000kW/rpm
• Emission Regulation- China Stage III

Slot

• Groove Width- 500-1200mm
• Groove Depth- 35m

Overall Machine

• Overall Height- 22870mm
• Operating Weight- 83T
• Transport Width- 3540mm
• Transport Height- 3660mm

Working Equipment

• Max. Closing Force- 128T
• Weight- 2.5-9T
• Open & Close Bucket Time- 5/8S

Main Winch

• Lifting Capacity- 235kN
• Max. Line Speed- 32m/min
• Wire Rope Diameter- 70mm

Price: 2201000 AED

For More Information

Call us on: +971 525384269
