AED2,200,000
Listen

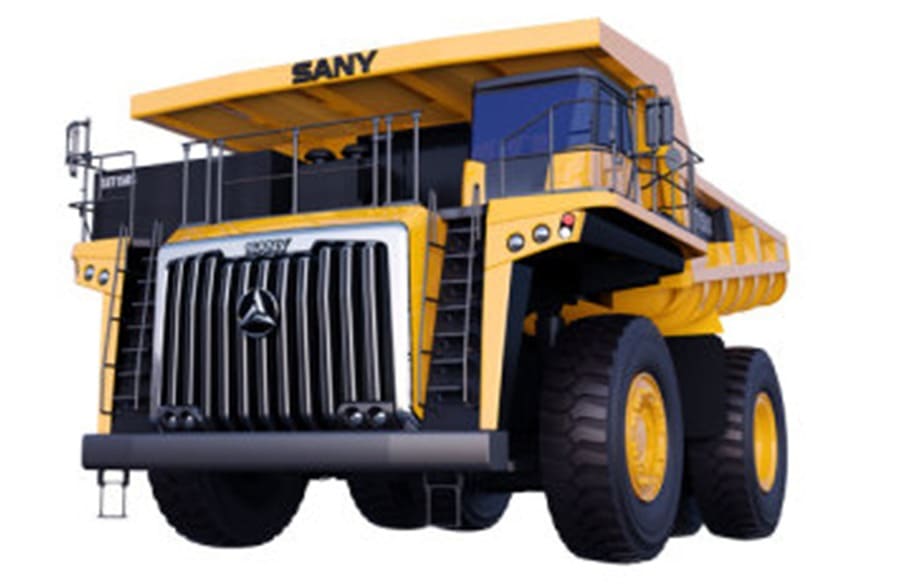

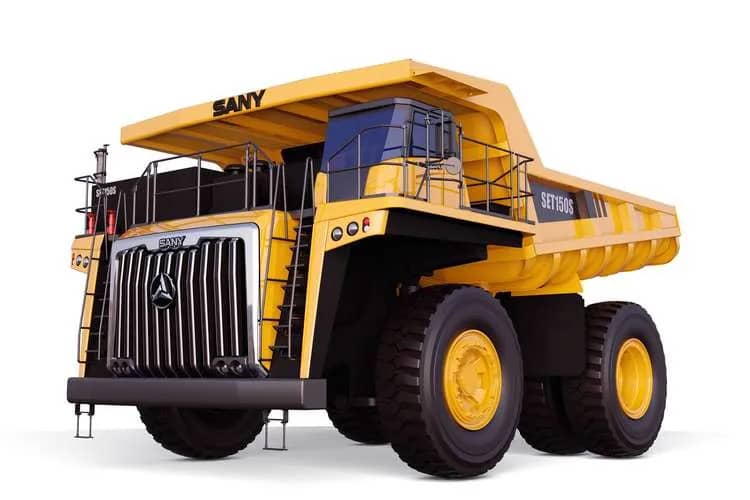

Efficiency and endurance define the SANY SET150S Diesel Electric Mining Truck. Its innovative diesel-electric drive system cuts fuel use without compromising performance. Featuring strong structural integrity and heavy payload capability, it thrives in challenging mining terrains. Operators benefit from improved productivity and lower overall operating costs.
Parameters:
- Net Weight: 105T
- Engine Model: Weichai WP17
- Capacity (Struck/Heaped): 60/78m³
- Size: 11812*6900*6185mm
- Left/Right Hand Drive: Left/Right
- Total Power: ≥1400kW
- Displacement: 16.72L
- Maximum Torque: 3000NM
- Max. Gradeability: 30%
- Min. Turning Radius: 13200mm
- Number/Type of Cylinders: 8/V shape,turbocharged
- Lubrication System: Automatic lubrication system
- Automatic/Manual: Automatic
- Tyre: 33.00R51
- Load Weight: 136T
Features:
- Steering: Independent hydraulic steering with closed-center steering valve, pressure compensating piston pump and accumulator. The accumulator provides uniform steering regardless of engine speed. In the event of loss of engine power, it provides emergency power to the system for steering.
- Electric Drive System: The performance of drive system depends on the gross vehicle weight, gradient and length of transport road, rolling resistance, engine power, and other parameters. The drive system can adjust to the actual working conditions to realize the optimal performance of the mining dump truck.
