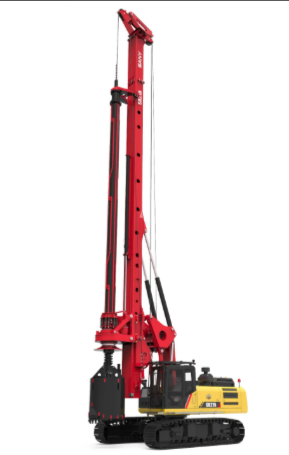

This rotary drilling rig is perfect for deep civil construction with quick hoist speed and efficient drilling. Its telescopic chassis and roller slewing bearing ensure strong stability for deep borehole work. Powered by a high-displacement EFI engine, it optimizes fuel use for energy savings. A durable box mast and sixth-generation Kelly bar provide greater resistance and drilling power. User convenience is enhanced with a responsive 10-inch HD touch display.

Parameters

Main Chassis

• Base Engine- Isuzu 6HK1
• Engine Power- 212/2000kW/rpm
• Emission Regulation- China Stage Ⅲ

Rotary Drive

• Rated Speed- 5~30rpm
• Rated Output Torque- 220kN·m

Pile

• Max. Pile Diameter- 1800mm
• Max. Pile Depth- 64/51m

Crowd System

• Crowd Force- 180kN
• Stroke- 4200mm
• Line Pull- 190kN

Overall Machine

• Overall Height- 21040mm
• Operating Weight- 65T
• Transport Width- 3210mm
• Transport Height- 3560mm

Main Winch

• Lifting Capacity- 220kN
• Max. Line Speed- 75m/min
• Rope Diameter- 28mm

Price: 2500000 AED
