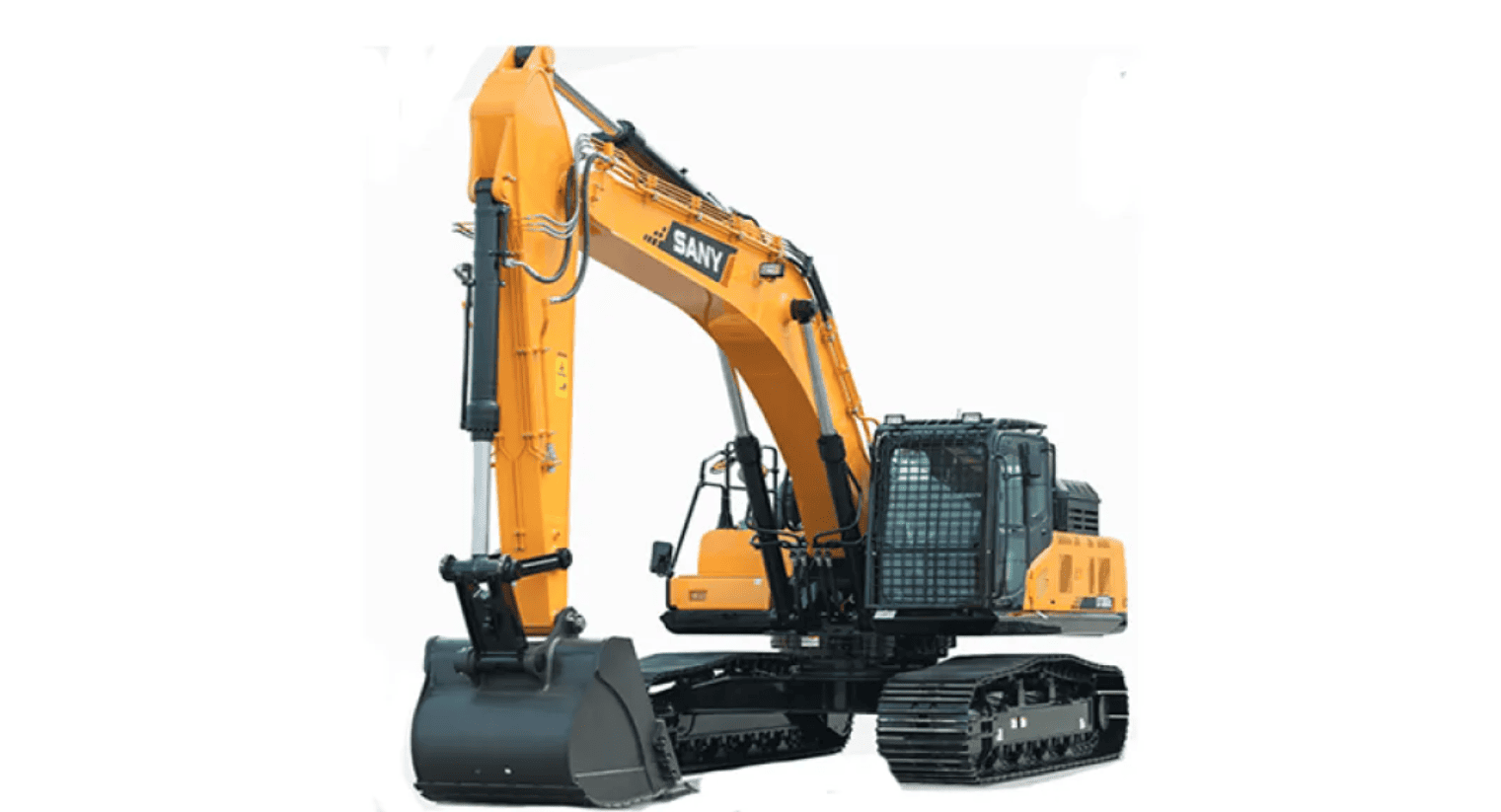

The 2025 SANY SY500H is a 50-ton class large hydraulic excavator engineered for high-efficiency earthmoving in demanding job sites. Powered by a high-performance Cummins engine, it delivers up to 400 horsepower and superior fuel efficiency. The SY500H features an advanced hydraulic system, reinforced boom and arm structures, and a spacious operator cab with intuitive controls. Ideal for mining, quarrying, and large-scale construction, it ensures durability, reliability, and maximum productivity.

Parameters

• Arm Digging Force: 245kN
• Bucket Capacity: 2.5m³
• Bucket Digging Force: 287kN
• Carrier Wheel on Each Side: 2
• Engine Displacement: 15.681L
• Engine Model: Isuzu 6WG1
• Engine Power: 300kW
• Fuel Tank: 600L
• Hydraulic Tank: 480L
• Operating Weight: 49.5T
• Radiator: 24L
• Standard Boom: 7m
• Standard Stick: 3m
• Thrust Wheel on Each Side: 9
