AED2,830,000
Listen

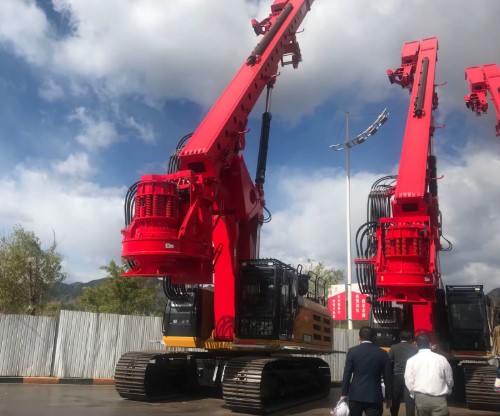

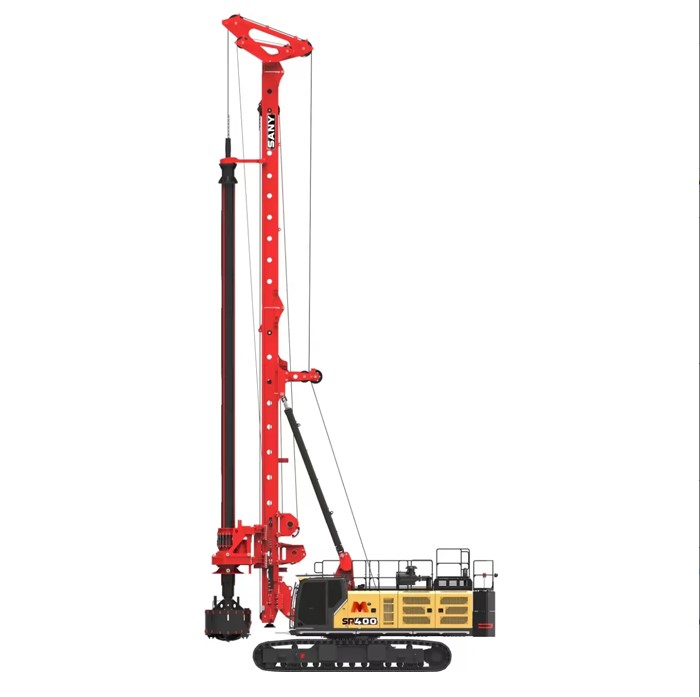

The SANY SR400M-V Rotary Drilling Rig offers unmatched drilling efficiency for large-scale piling and deep foundation works. Powered by a high-torque rotary system and advanced hydraulics, it provides consistent power and control. Its intelligent management system enhances accuracy and real-time performance monitoring. Built for durability and energy optimization, it reduces fuel use and maintenance costs. A trusted choice for demanding construction and infrastructure projects.
Parameters-
- Base Engine: Cummins X15
- Engine Power: 391/1800kW/rpm
- Emission Regulation: Stage V/Tier4 final
- Lifting Capacity: 410kN
- Max. Line Speed: 66m/min
- Rated Speed: 7~26rpm
- Rated Output Torque: 400kN·m
- Max. Pile Diameter: 2500mm
- Max. Pile Depth: 103/86m
- Crowd Force: 405kN
- Stroke: 9000/19000mm
- Line Pull: 405kN
- Overall Height: 27430mm
- Operating Weight: 137T
- Transport Width: 3600mm
- Transport Height: 3380mm
- Rope Diameter: 36mm
>>>Request for quote: +971525384269<<<
Features:
- High Efficiency: Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.
- Economy and Energy Saving: Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.
- Convenience: The rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.
- Step Drum: Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.
- Intelligent Upgrade: HD touch screen, 3ms refresh frequency, smooth animation display.
