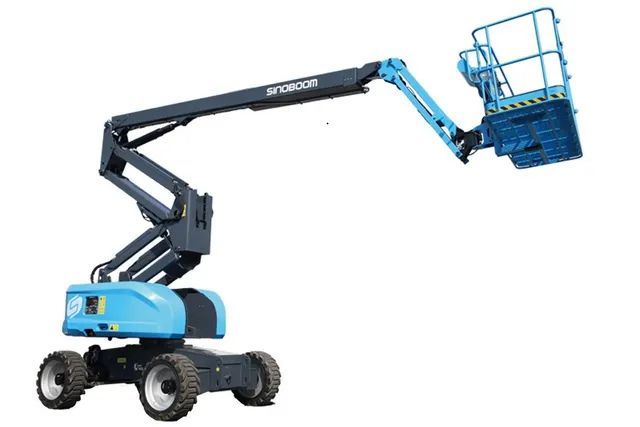

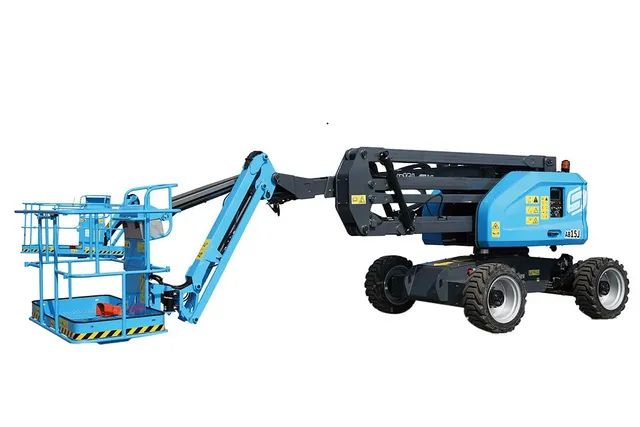

The Sinoboom AB15J is a high-performance engine-powered articulating boom lift designed for precision and operational efficiency, reaching heights of up to 16.7 meters. Its compact width and zero tail swing make it highly maneuverable in confined spaces. The platform can be elevated or lowered independently of the secondary boom, allowing for smoother adjustments. A simplified linkage system and hydraulic self-leveling ensure consistent reliability. Featuring three joysticks with variable proportional control, the lift offers accurate and responsive handling. Built for both indoor and outdoor environments, the AB15J is ideal for tasks in construction, maintenance, and facility management.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
