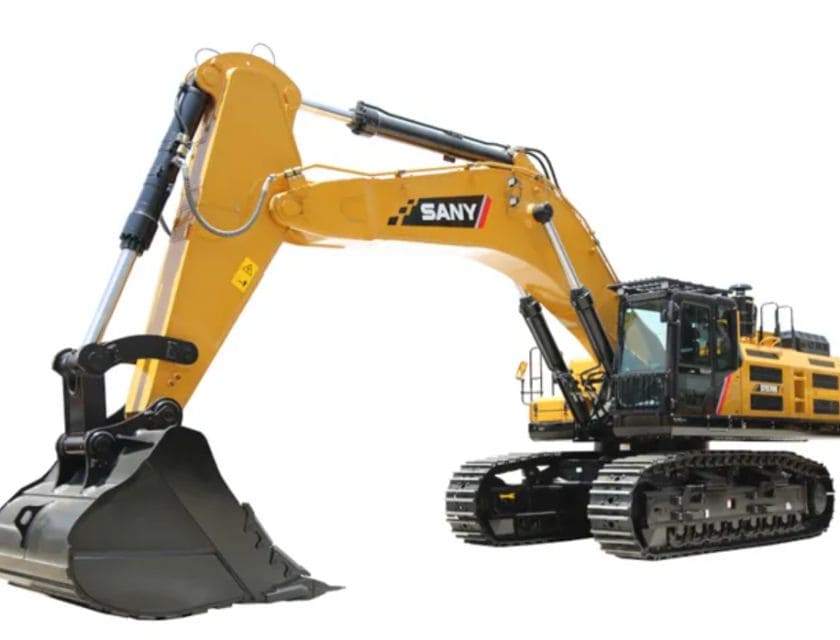

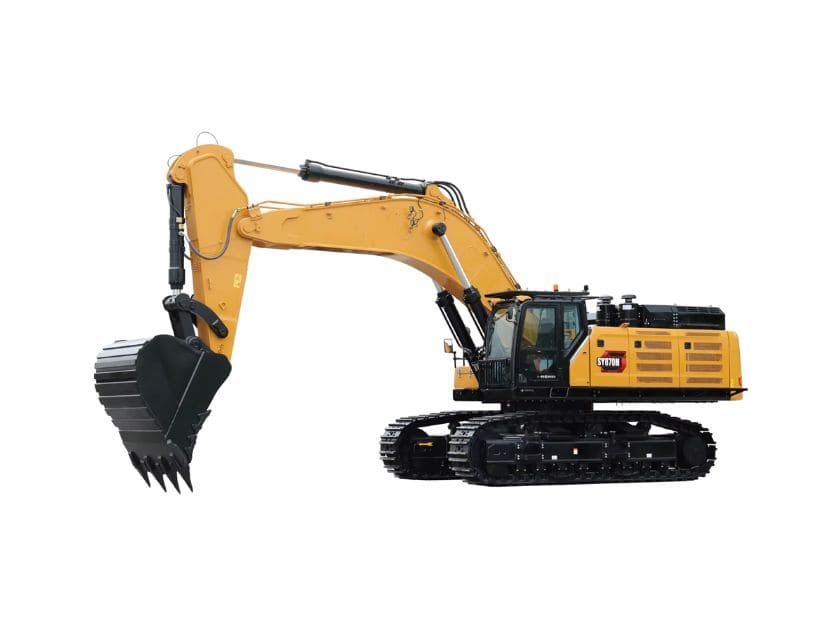

The SY870H, SANY Heavy Machinery’s newest and most potent large equipment class excavator, has been formally introduced. Modern technology and tested durability are combined in the 2025 SY870H, which is designed for high-volume excavation. The SY870H is a mining, infrastructure, and large-scale construction machine that raises the bar for efficiency, operator comfort, and productivity.

Parameters

• Arm Digging Force: 370 kN
• Bucket Capacity: 5.4 m³
• Bucket Digging Force: 432 kN
• Carrier Wheel on Each Side: 3
• Engine Displacement: 15.681 L
• Engine Model: Isuzu 6WG1
• Engine Power: 377 kW
• Fuel Tank: 940L
• Hydraulic Tank: 700L
• Operating Weight: 78.6 T
• Radiator: 70 L
• Standard Boom: 7 m
• Standard Stick: 2.6 m
• Thrust Wheel on Each Side: 8
