Product Description

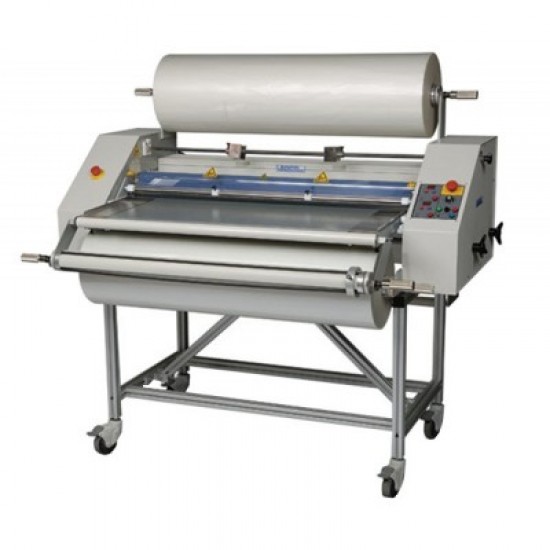

The 60 inch wide Ledco Digital Laminator was the first laminator designed exclusively for the owners of 50 inch inkjet printers. The Ledco Digital 60 is ideal for the large laminating marketplace that needs to protect and enhance the output from their 50 inch printers.

The 60 inch wide Ledco Digital Laminator was the first Laminator designed exclusively for the owners of 50 inch inkjet printers. The 60 inch Ledco Digital will do all the finishing tasks required of a large format imaging shop: laminating one side or two, encapsulating, mounting with heat activated (dry mount) or cold pressure-sensitive adhesives (PSA), simultaneous mounting and laminating, and application of cold adhesives.

This Ledco laminator was made to be very easy to use, incorporating many of the glitch-proof features Ledco has developed over 40 years of making laminators for schools and commercial finishing shops. This unit will laminate one item then mount and laminate the next in one pass using mounting boards up to 1/2-inch thick. No setup change is needed. In fact, you can laminate one item, then mount and laminate the next in one pass without even stopping the machine. With a top speed of 30 FPM and a sustainable laminating speed of 12 FPM with 5-mil film, the Ledco Digitals are much faster than the other machines made for big format color applications. An optional release liner takeup allows these machines to apply cold laminating films, vinyls, and other PSA materials needing removal of a liner.

Standard features on this unit include variable speed, independent top and bottom heat controls, spacious feed tray, powerful film cooling system, and swing-away heating units for cold applications and easy cleaning of the rollers.

Brand

Ledco

Width

60″

Min/Max Film Thickness

1.5 mil – 10 mil

Core Size

3″

Laminating Type

Hot/Cold

Heating Method

Hot Shoe

Warm Up Time

20 min

Reverse Switch

Yes

Speed (Feet per Minute)

20fpm

Adjustable Temperature

Yes

Ready Light

No

Safety Auto Shutoff

No

Safety Shield

1

Feed Table Safety Switch

Yes

Feed Table Alignment Guide

Yes

Key Lock

No

Built-in Horizontal Trimmer

No

Mounting Capability

Yes

Mounting Thickness in mil

1/2″

Roller Gap Adjustment

No

Cooling Fans

1

Electrical Requirements

240V; 60Hz; 40A; 7400W

Machine Dimensions

71″ x 39″ x 43″

Weight

880 lbs

Shipping Weight

1200 lbs

Safety Approval

CE

Units Per Parcel

1

Country Of Origin

USA

Free Shipping

No

Package Type

Each

Warranty

1 Year
