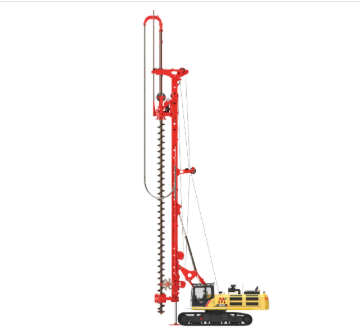

Engineered for soil and rock layer construction, the SANY SR235-MIII Rotary Drilling Rig delivers refined motion control with torque and rotation adjustments for varied geological settings. Its engines, built with global partners, meet stringent Tier IV/III emission standards while offering stable and fuel-efficient power. The 15m extended stroke enables quick crowding and pulling, ideal for beach and backfill environments. Real-time display of the locking mechanism during operation prevents mishaps, while consistent wire rope tension extends durability. An HD touch screen with rapid refresh and fluid visuals enhances operation, and regular lubrication keeps the machine running smoothly.

Parameters

CFA Mode

• Crowd Force- /kN
• Stroke- 17060mm
• Overall Height- 29775mm
• Max. Pile Diameter- 1000mm
• Max. Pile Depth- 24m
• Operating Weight- 90T
• Line Pull- 770kN
• Rated Speed- 5~30rpm
• Rated Output Torque- 100~230kN·m

Standard Mode

• Crowd Force- 210kN
• Stroke- 15000mm
• Overall Height- 24050mm
• Max. Pile Diameter- 2000mm
• Max. Pile Depth- 73/56m
• Operating Weight- 86T
• Line Pull- 270kN
• Rated Speed- 5~30rpm
• Rated Output Torque- 235kN·m

Main Chassis

• Base Engine- 6UZ1
• Engine Power- 257/2000kW/rpm
• Emission Regulation- China Stage III

Low Headroom

• Crowd Force- 210kN
• Stroke- 4500mm
• Overall Height- 12135~13205mm
• Max. Pile Diameter- 2000mm
• Max. Pile Depth- 24m
• Operating Weight- 75T
• Line Pull- 270kN
• Rated Speed0- 5~30rpm
• Rated Output Torque- 235kN·m

Overall Machine

• Transport Width- 3550mm
• Transport Height- 3750mm

Main Winch

• Lifting Capacity- 235kN
• Max. Line Speed- 70m/min
• Rope Diameter- 32mm

Price: 260000 AED

For More Information

Call us on: +971 525384269
