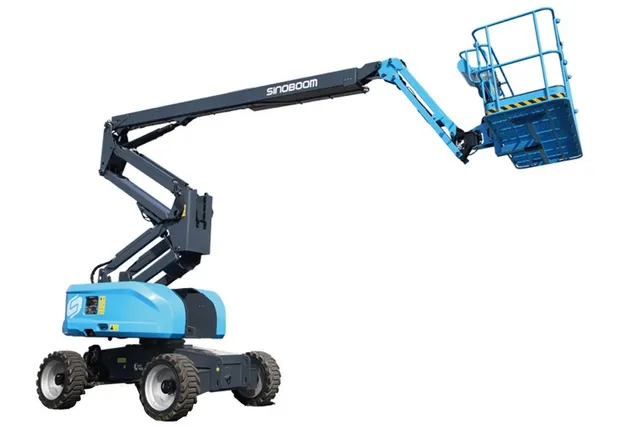

Perfect for construction and facility tasks, the AB15J provides high reach with precision. Zero tail swing and compact design allow access to tight areas, while reliable hydraulics and intuitive controls maximize operator efficiency.

Highlights

• Tight-Space Friendly Design

• Rapid, Accurate Lift Control

• Reliable Performance Every Shift

Technical specification

• Reference Number- AMH209
• Working hours- 0 hrs
• Operating weight (kg)- 7,080 Kg
• Engine Output- 36 kW
• Max Number of Operators- 2
• Working Height- 16.7 m
• Platform Capacity- 250 kg
• Max Horizontal Extension- 8.5 m
• Power- Diesel engine
• Drive × Steer- 4WD × 2WS
• Turntable Rotation- 355°/Non-Continuous
• Platform Rotation- 160°
• Gradeability- 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system
• Tilt protection system Max tilt rating to 5°
• Emergency stop/lowering system
• Telematics-ready connector
• Non-marking tires foam-filled / solid
• AC power to platform
