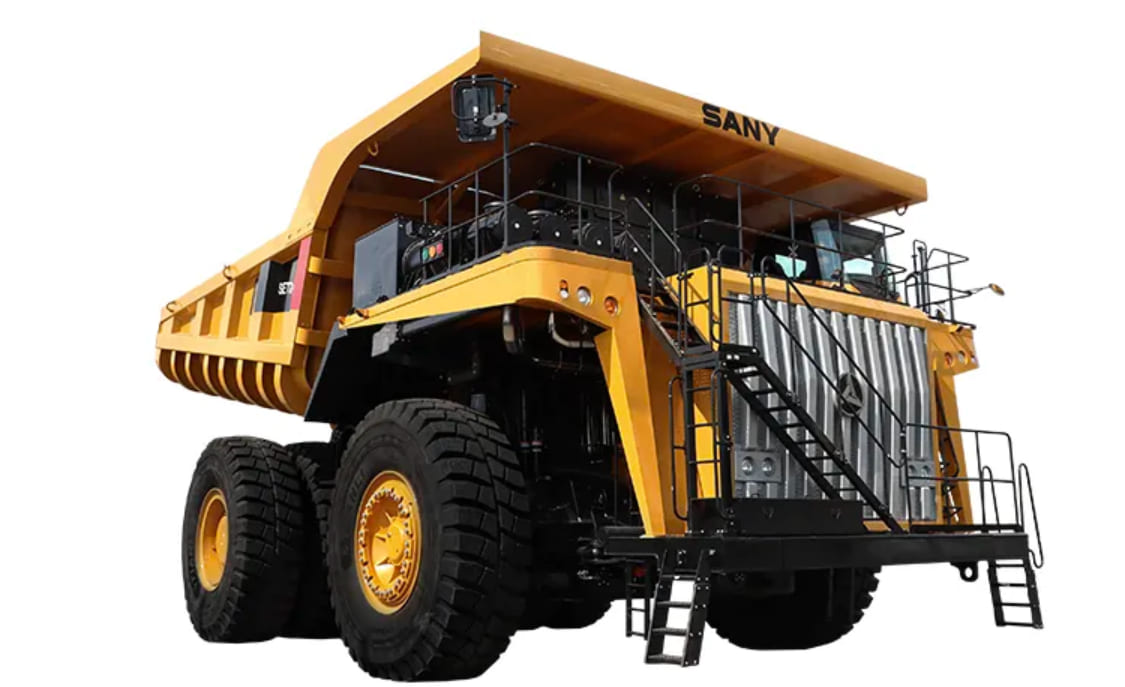

Designed for demanding mining conditions, the 2025 SANY SET240S combines a diesel-electric hybrid drivetrain with a 240-ton payload capacity. This mining truck enhances fuel efficiency and reduces emissions while maintaining powerful performance. Its intelligent control systems ensure safe operation and efficient energy use. Inside the cabin, operators enjoy spacious, ergonomic seating and controls for a comfortable work environment.

Parameters

• Net Weight: 170T
• Engine Model: Weichai WP17
• Gearbox Type: –
• Capacity (Struck/Heaped): 105/147m³
• Size: 14900*8200*7050mm
• Left/Right Hand Drive: Left/Right
• Total Power: ≥2091kW
• Displacement: 16.72L
• Maximum Torque: 3000NM
• Max. Gradeability: 30%
• Min. Turning Radius: 14500mm
• Number/Type of Cylinders: 8/V shape,turbocharged
• Lubrication System: Automatic lubrication system
• Automatic/Manual: Automatic
• Axle: –
• Tyre: 40.00R57
• Load Weight: 220T
