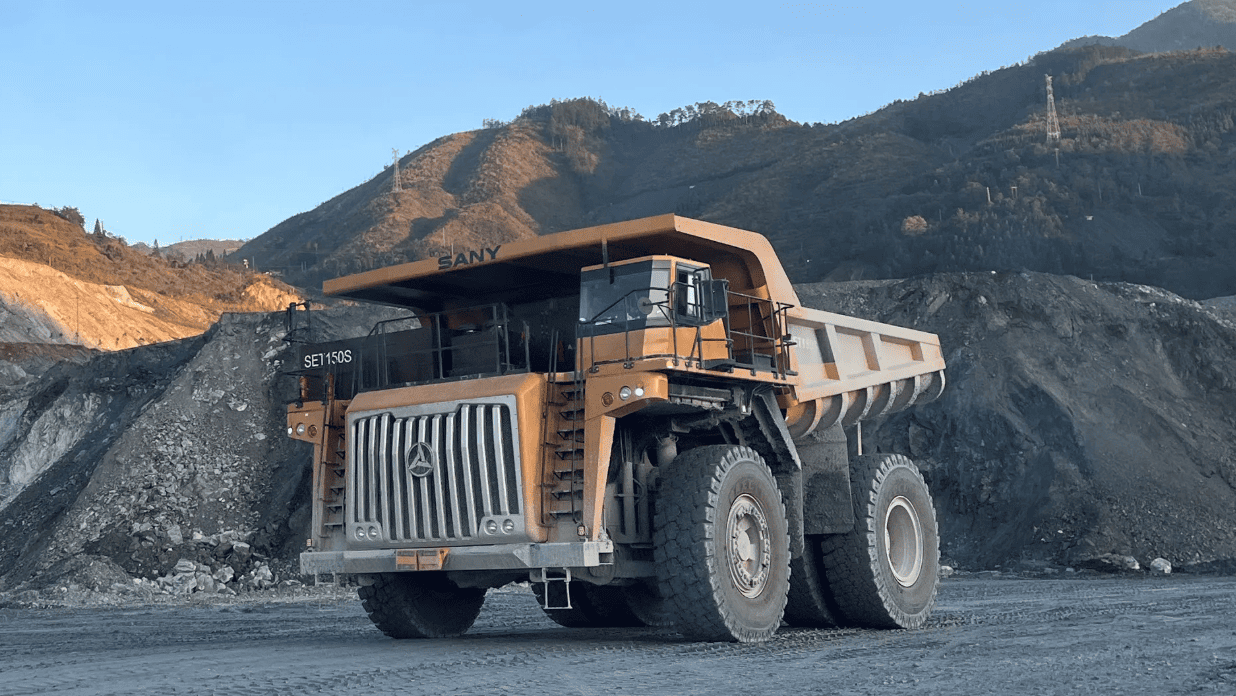

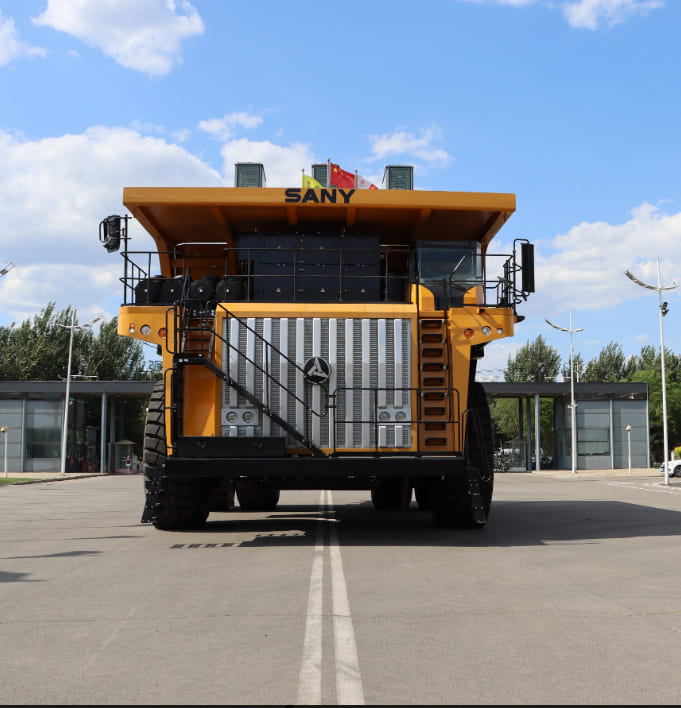

The hybrid-powered 2025 SET150S from SANY is built for high-performance mining. With a 150-ton payload, it’s engineered for strength and endurance. Diesel-electric efficiency reduces fuel use and emissions. Operators enjoy enhanced safety and comfort thanks to its modern control systems and cab.

Parameters

• Net Weight: 105T
• Engine Model: Weichai WP17
• Gearbox Type: –
• Capacity (Struck/Heaped): 60/78m³
• Size: 11812*6900*6185mm
• Left/Right Hand Drive: Left/Right
• Total Power: ≥1400kW
• Displacement: 16.72L
• Maximum Torque: 3000NM
• Max. Gradeability: 30%
• Min. Turning Radius: 13200mm
• Number/Type of Cylinders: 8/V shape,turbocharged
• Lubrication System: Automatic lubrication system
• Automatic/Manual: Automatic
• Axle: –
• Tyre: 33.00R51
• Load Weight: 136T
