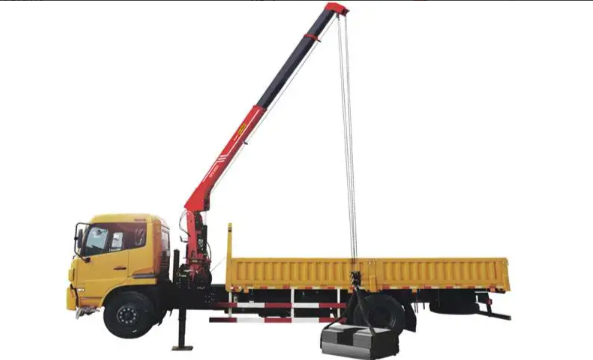

Engineered for ergonomic efficiency, the crane offers reliable comfort and safety. Its rugged structure is simple to maintain, supported by modular standard connections. Controls are responsive, enabling precision in demanding lifting tasks and multi-function stability. Hydraulic life is extended with a high-pressure filter included as standard. With UV-resistant materials and a stylish finish, it combines strength with visual appeal.

Parameters

• Boom Length- 3.5-10.4m
• Length of the Basic Boom- 3.5 m
• Length of the Fully Extended Boom- 10.4 m
• Max. Lifting Capacity- 3.6T
• Max. Lifting Height- 12.5m
• Max. Outreach- 10.2m
• Numbers of the Boom- 3 or 4
• Operating Mode- Lower seat
• Outrigger Span- 4.4 (m)
• Overall Weight- 1.3T
• Range of the Boom Lifting Angle- 0~75°
• Rated Lifting Moment- 8mt
• Rated Lifting Weight- 3.2T
• Recommended Volume for the System- 30-40 L/min
• Slewing Angle- Endless

Price: 700000 AED
