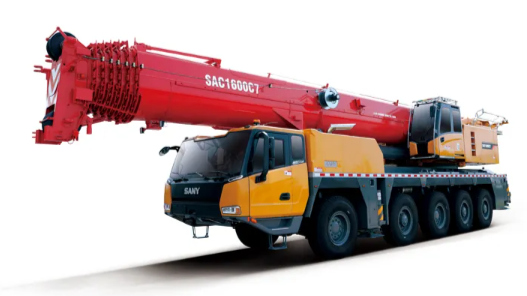

Built with a compact design, this crane delivers better suspension and all-wheel steering for maximum adaptability. Flexible jib and counterweight options make lifting tasks cost-efficient. The single-cylinder pin system allows multiple boom configurations. It can travel with counterweights onsite, minimizing the need for extra trailers.

Parameters

Operation

• Counterweight- 53T
• Max. Lifting Capacity- 160T
• Max. Boom Length- 74.8m
• Max. Jib Length- 34m
• Max. Lifting Height- 103m
• Max. Lifting Moment- 5174kN·m

Traveling

• Available Districts- Outside Europe & USA
• Engine Model (Emission Standard)- DF Cummins QSZ13-C525-30 (EU Stage ⅢA)
• Max. Gradeability- 46%
• Max. Traveling Speed- 80km/h
• Wheel Formula- 10×6×10

Price: 1350000 AED

For More Information

Call Us Now: +971 525384269
