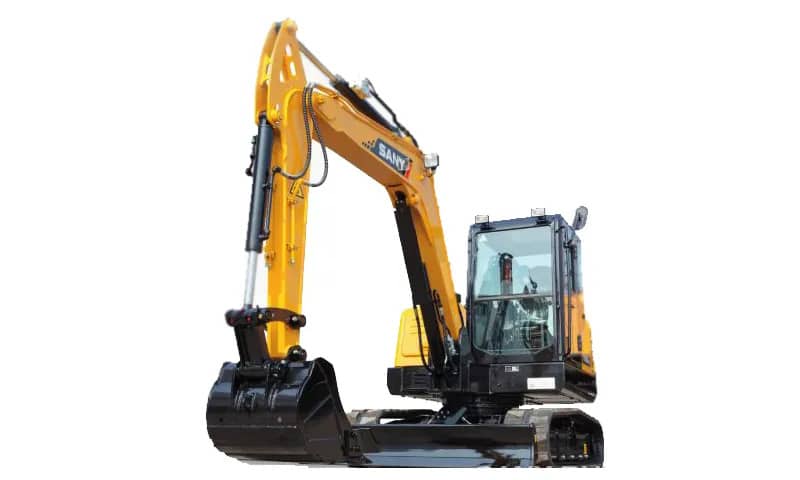

As a next-generation compact excavator that satisfies both Tier 4 Final (EPA) and Stage V (EU) emissions regulations, the 2025 SANY SY60C is safe for the environment and suitable for use on construction sites across the globe. Fuel efficiency, strong digging capabilities, and outstanding hydraulic performance are all provided by the SY60C’s powerful Yanmar engine. Its small radius and zero tail swing make it perfect for small-space urban or domestic tasks. An operator-friendly cab with enhanced visibility and comfort, reinforced frame, a sophisticated load-sensing hydraulic system, and an intuitive control layout are some of the key characteristics.

Technical specification

• Engine Power: 42.4kW
• Engine Model: Yanmar 4TNV98C
• Engine Displacement: 3.3L
• Operating Weight: 6T
• Radiator: 10.4L
• Arm Digging Force: 33kN
• Standard Stick: 1.7m
• Standard Boom: 3m
• Carrier Wheel on Each Side: 1
• Thrust Wheel on Each Side: 5
• Hydraulic Tank: 85L
• Fuel Tank: 130L
• Bucket Capacity: 0.21m³
• Bucket Digging Force: 45kN
