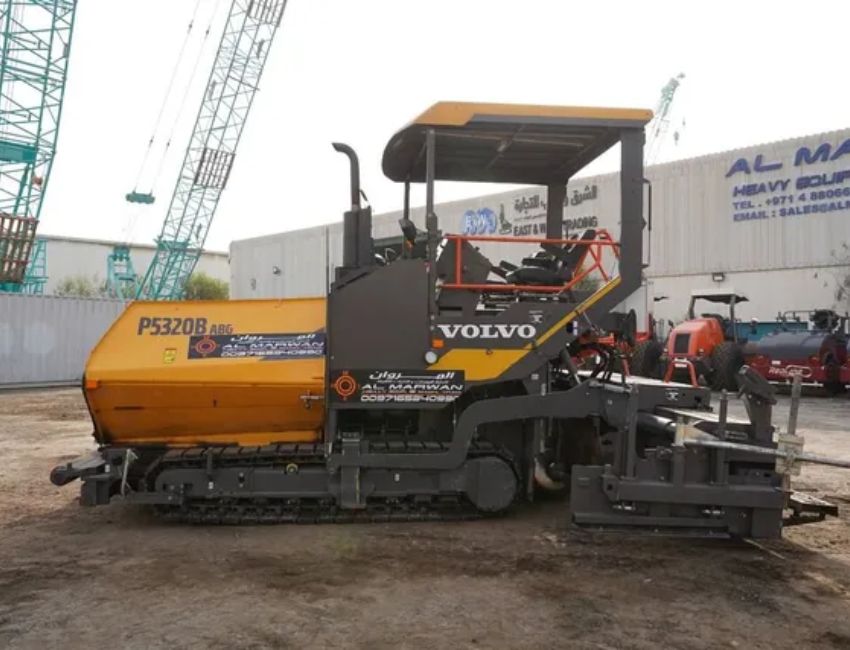

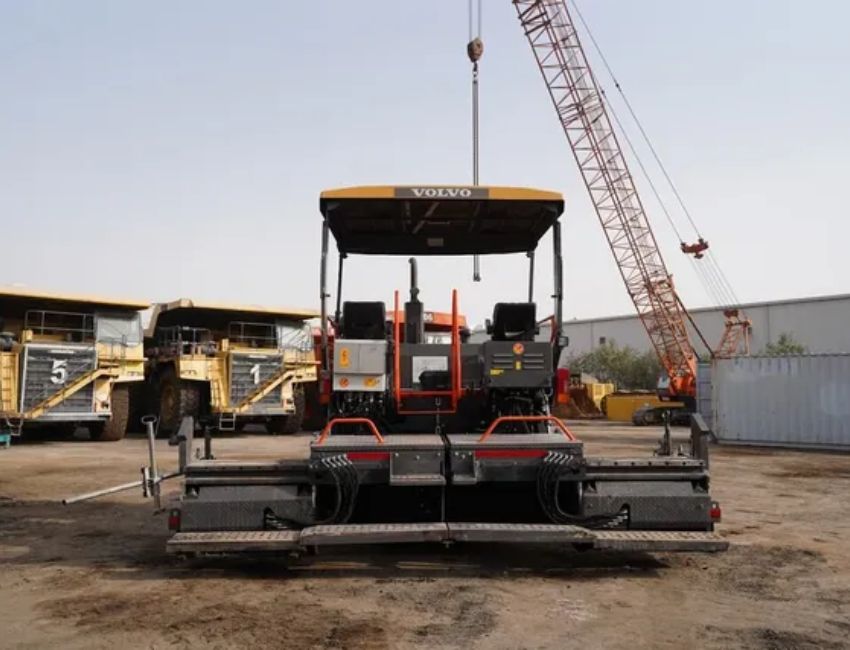

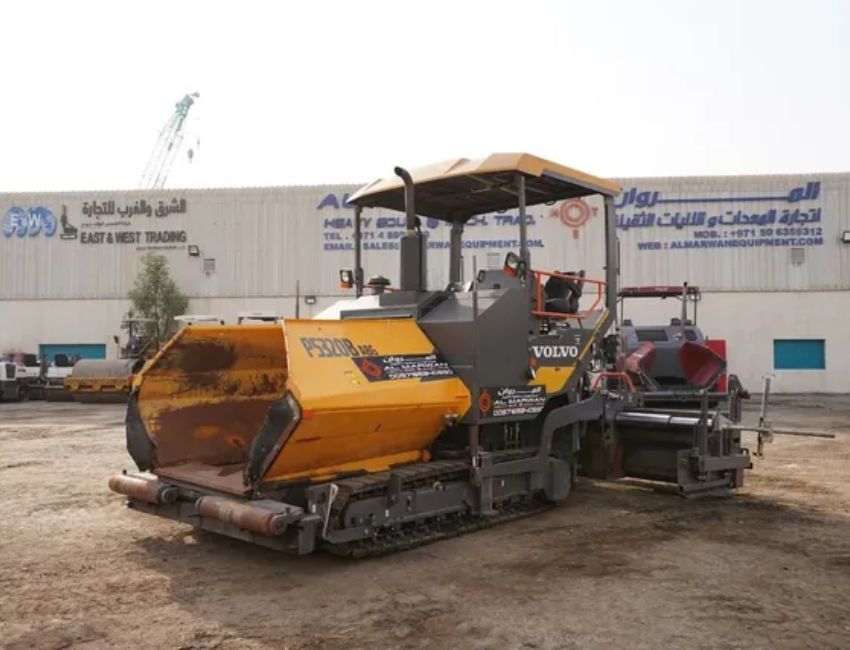

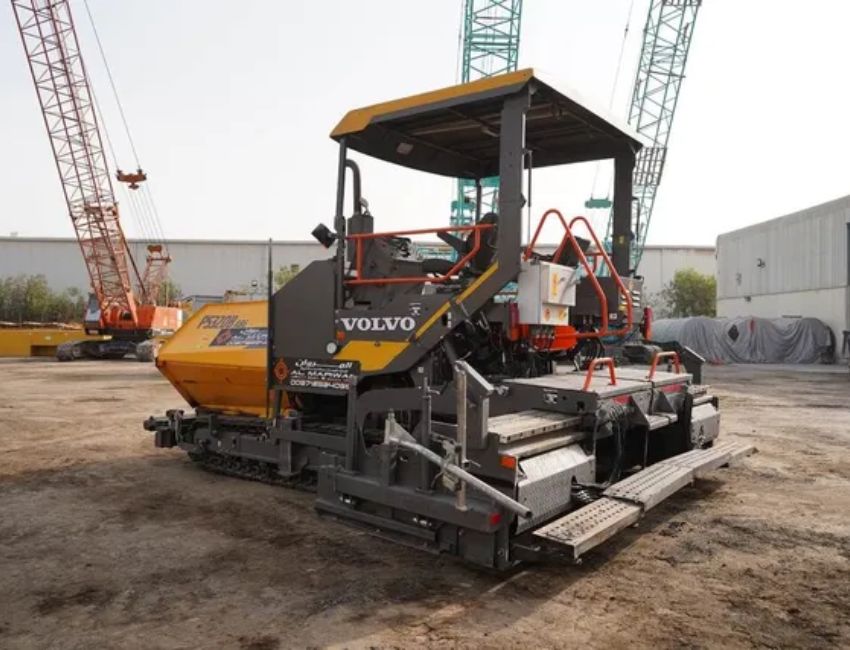

Volvo P5320B ABG – Efficient Asphalt Paving Machine
Engineered for productivity with a 12-ton hopper and high-capacity auger system, delivering consistent paving results.

Highlights:

• 600 t/h capability

• 13 mm heavy-duty rollers

• Screed range 2.5m to 4.75m

Technical specification:

Reference Number – AS-0053

Working hours – 1,287 hrs

Operating weight (kg)- 11,700 Kg

Country of Origin – India

Cab type- Foldable Canopy

Engine Make- Volvo

Engine Model- D5

Engine Output- 118 HP

Fuel Capacity- 230 liters

Travel Speed- 3.2 km/h

Working Width- 4.75 m

Hopper Capacity- 12 ton

EPA – Certified

Emissions – EPA Tier III

Features:

• 13 mm Heavy duty push rollers

• 12 ton capacity large folding hopper wings

• Sliding control panel

• Electronic drive control

• Automatic conveyor and auger control

• 360 mm diameter independent auger drive

• Adjustable height and reversing auger

• 118 HP Volvo D5 diesel engine

• 2.5m to 4.75m hydraulically extendable screed

• 20kVA Generator for Electrical heating of main and screed extensions

• 17 m/min Paving speed

• Max laydown rate 600 t/h

• 3.2 km/h Travel speed

• Heavy duty teflon rollers

• Automatic track tensioner

• Thick trapezoidal track shoes

• Diesel spray cleaning system
