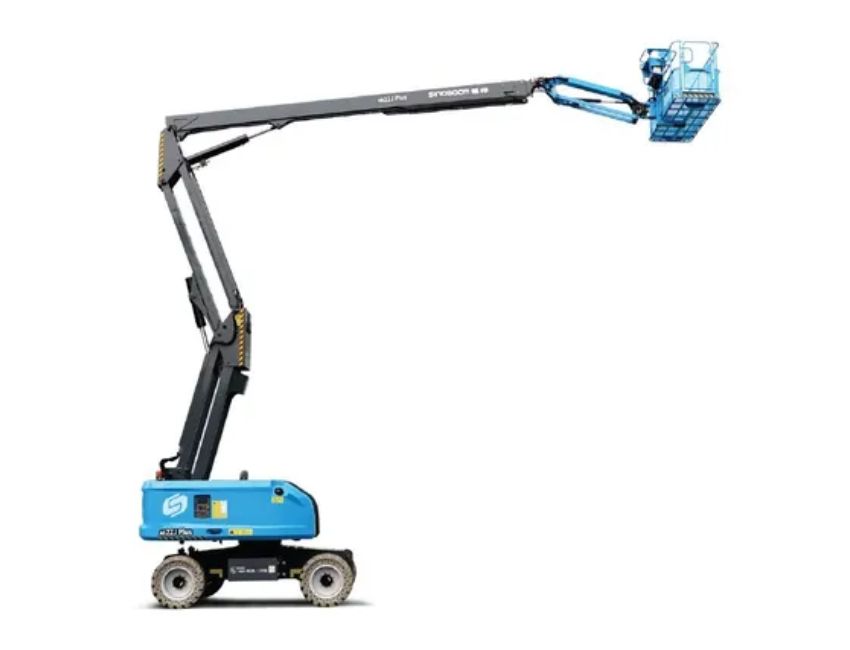

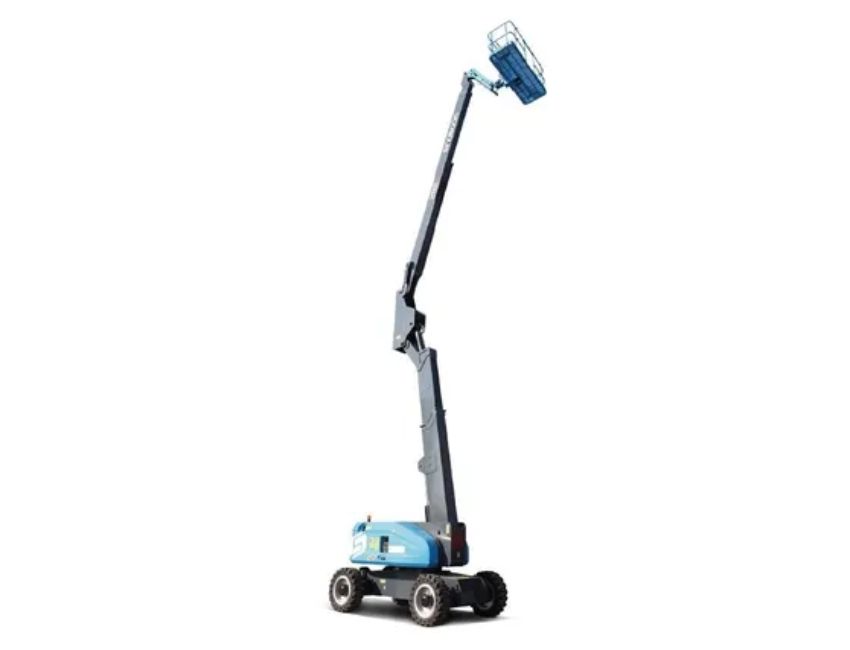

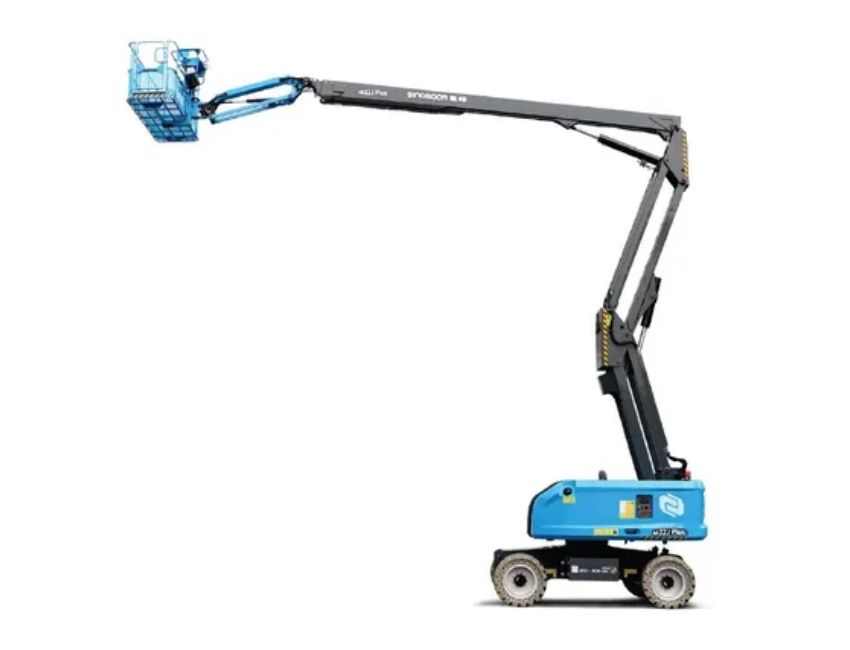

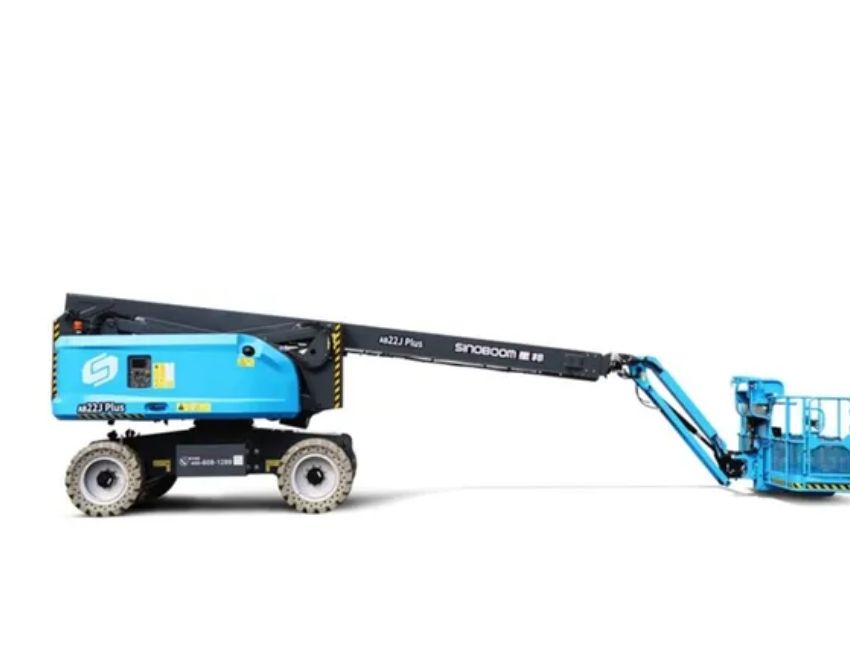

Sinoboom AB22J Plus – Power Meets Precision
Designed for challenging environments, the AB22J Plus lifts up to 454kg while automatically adjusting performance for peak efficiency. Its rugged drive, continuous rotation, and stability enhancements ensure maximum productivity.

Highlights:

• Smart Load Adjustment

• Rugged Climbing Power

• Fault-Proof Safety

Technical specification:

Reference Number- AMH268

Working hours- 0 hrs

Operating weight (kg)- 12,000 Kg

Engine Output- 36 kW

Max Number of Operators- 3

Working Height- 23.6 m

Platform Capacity- 454 kg

Telematics- Available

Max Horizontal Extension- 13.35 m

Power- Diesel

Drive × Steer- 4WD x 2WS (4WS）

Turntable Rotation- 360°/Continuous

Gradeability- 40%

Features:

• Tilt protection system with a max allowable tilt angle of 5°

• Hydraulic leveling and emergency stop/lowering systems

• Rear position confirmation

• Rotating warning light, horn, and buzzer for safety

• Fault diagnosis system

• Proportional control with 3 joysticks

• Continuous 360° turntable rotation

• Active oscillating function

• Four-wheel steering – four-wheel brake

• Weighing system and automotive sleeves for all pipes

• AC power line to the platform

• 7-in smart screen and voice broadcast
