AED2,200,000
Listen

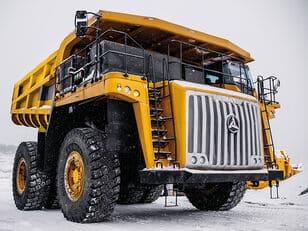

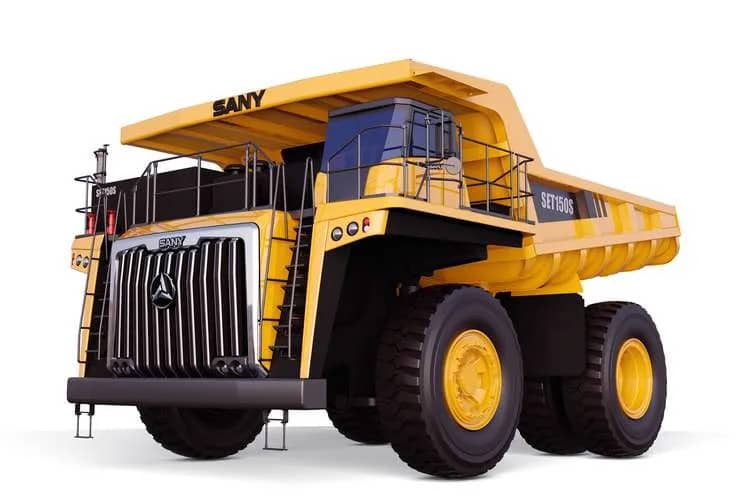

The SANY SET150S Diesel Electric Mining Truck combines strength, efficiency, and advanced technology. Its innovative powertrain reduces fuel use, lowering operating expenses. Designed with a heavy-duty structure, it handles high payloads with ease. Ideal for demanding mining conditions, it ensures stable and consistent output.
Parameters:
- Net Weight: 105T
- Engine Model: Weichai WP17
- Capacity (Struck/Heaped): 60/78m³
- Size: 11812*6900*6185mm
- Left/Right Hand Drive: Left/Right
- Total Power: ≥1400kW
- Displacement: 16.72L
- Maximum Torque: 3000NM
- Max. Gradeability: 30%
- Min. Turning Radius: 13200mm
- Number/Type of Cylinders: 8/V shape,turbocharged
- Lubrication System: Automatic lubrication system
- Automatic/Manual: Automatic
- Tyre: 33.00R51
- Load Weight: 136T
Features:
- Steering: Independent hydraulic steering with closed-center steering valve, pressure compensating piston pump and accumulator. The accumulator provides uniform steering regardless of engine speed. In the event of loss of engine power, it provides emergency power to the system for steering.
- Electric Drive System: The performance of drive system depends on the gross vehicle weight, gradient and length of transport road, rolling resistance, engine power, and other parameters. The drive system can adjust to the actual working conditions to realize the optimal performance of the mining dump truck.
