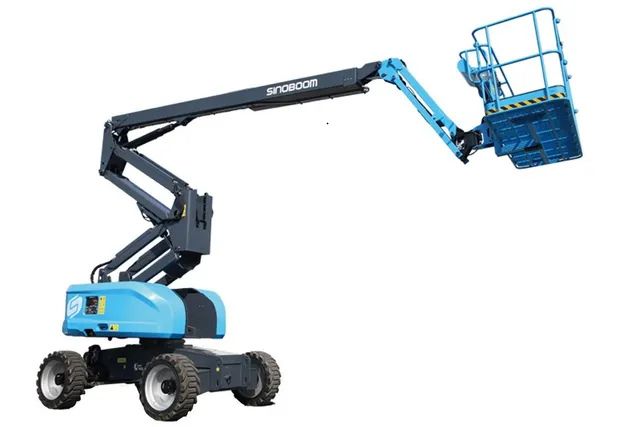

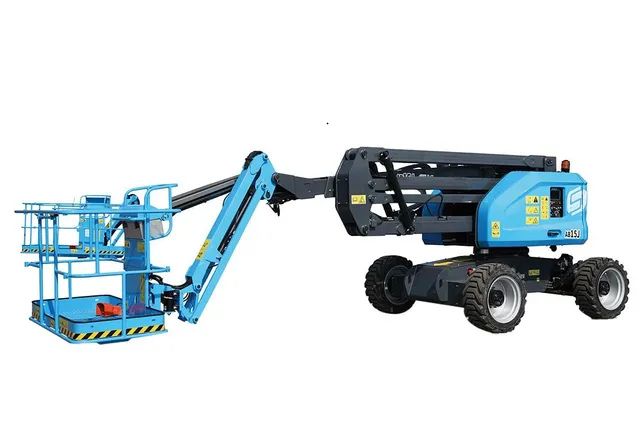

Designed with both functionality and precision in mind, the Sinoboom AB15J articulating boom lift provides a working height of up to 16.7 meters. Its slim build and zero tail swing enable easy navigation in restricted spaces. Operators can raise or lower the platform without shifting the secondary boom arm, simplifying vertical movement. The unit’s simple linkage system and hydraulic leveling promote consistent and dependable performance. Equipped with three joysticks featuring variable proportional controls, it ensures smooth, precise operation. Ideal for both indoor and outdoor applications, the AB15J supports a wide range of high-reach tasks across construction, maintenance, and facility operations.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
