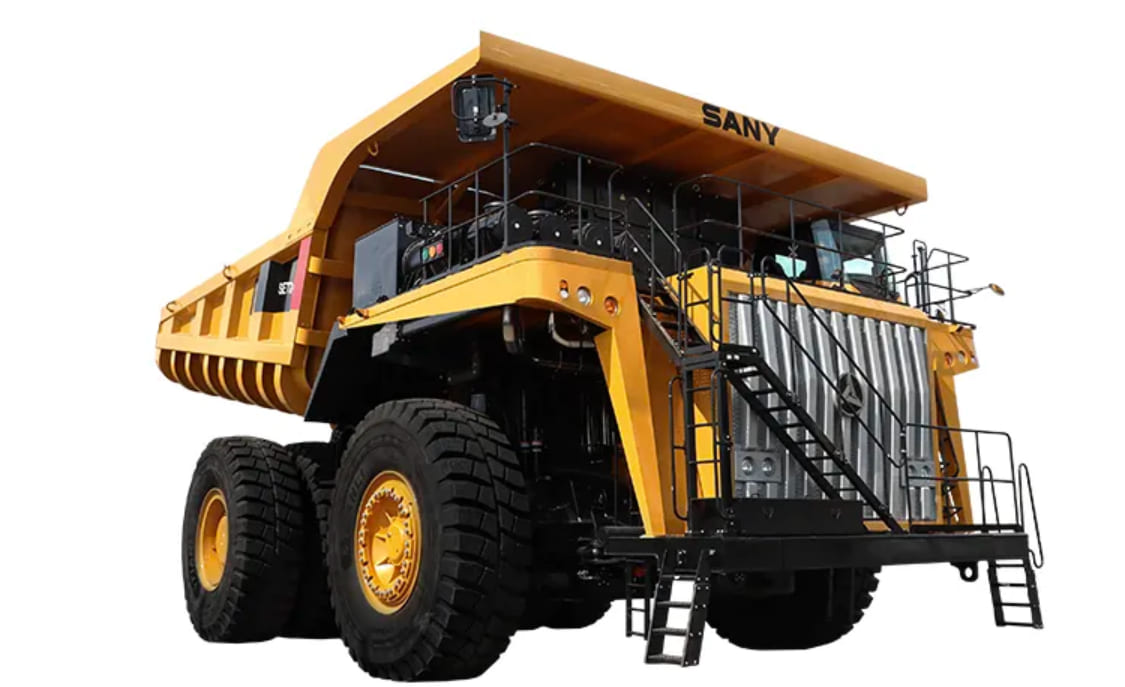

The 2025 SANY SET240S mining truck is a powerful hybrid vehicle designed to support heavy loads up to 240 tons. By integrating diesel and electric power, it achieves significant fuel savings and lowers emissions. Built for rough terrain, it features advanced energy management and safety systems. The comfortable, ergonomically designed cabin helps operators stay productive and alert during long shifts.

Parameters

• Net Weight: 170T
• Engine Model: Weichai WP17
• Gearbox Type: –
• Capacity (Struck/Heaped): 105/147m³
• Size: 14900*8200*7050mm
• Left/Right Hand Drive: Left/Right
• Total Power: ≥2091kW
• Displacement: 16.72L
• Maximum Torque: 3000NM
• Max. Gradeability: 30%
• Min. Turning Radius: 14500mm
• Number/Type of Cylinders: 8/V shape,turbocharged
• Lubrication System: Automatic lubrication system
• Automatic/Manual: Automatic
• Axle: –
• Tyre: 40.00R57
• Load Weight: 220T
