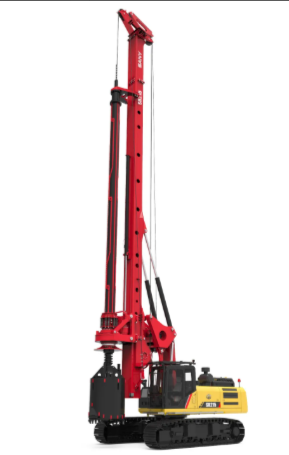

Built for deep borehole construction, this rig delivers fast hoist speeds and excellent verticality. Its large telescopic chassis and roller slewing design ensure superior stability. The imported EFI engine with power optimization improves response and fuel efficiency. The box mast design and upgraded Kelly bar add durability and drilling strength. Operators benefit from an easy-to-use 10-inch HD screen for efficient control.

Parameters

Main Chassis

• Base Engine- Isuzu 6HK1
• Engine Power- 212/2000kW/rpm
• Emission Regulation- China Stage Ⅲ

Rotary Drive

• Rated Speed- 5~30rpm
• Rated Output Torque- 220kN·m

Pile

• Max. Pile Diameter- 1800mm
• Max. Pile Depth- 64/51m

Crowd System

• Crowd Force- 180kN
• Stroke- 4200mm
• Line Pull- 190kN

Overall Machine

• Overall Height- 21040mm
• Operating Weight- 65T
• Transport Width- 3210mm
• Transport Height- 3560mm

Main Winch

• Lifting Capacity- 220kN
• Max. Line Speed- 75m/min
• Rope Diameter- 28mm

Price: 2500000 AED

For More Information

Call us Now: +971 525384269
