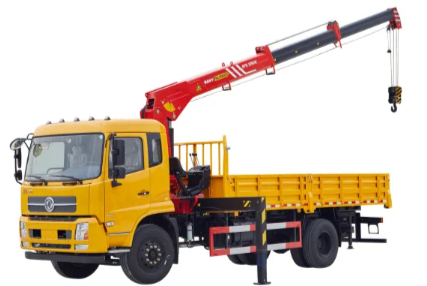

Comfort and safety are ensured by its ergonomic cab and design. With a rugged, low-maintenance build supported by modular parts, it’s dependable for long-term use. Sensitive controls enable accurate positioning for complex lifts, while stable performance supports simultaneous operations. A hydraulic filter is fitted as standard, extending service life. UV resistance and attractive design complement its high performance.

Parameters

• Boom Length- 4.3-11.9m
• Length of the Basic Boom- 4.3 m
• Length of the Fully Extended Boom- 11.9 m
• Max. Lifting Capacity- 5.6T
• Max. Lifting Height- 13.6m
• Max. Outreach- 11.6m
• Numbers of the Boom- 3 or 4
• Operating Mode- Lower seat
• Outrigger Span- 5.1 (m)
• Overall Weight- 2.37T
• Range of the Boom Lifting Angle- 0~75°
• Rated Lifting Moment- 12.5mt
• Rated Lifting Weight- 5T
• Recommended Volume for the System- 35-50 L/min
• Slewing Angle- Endless

Price: 767000 AED
