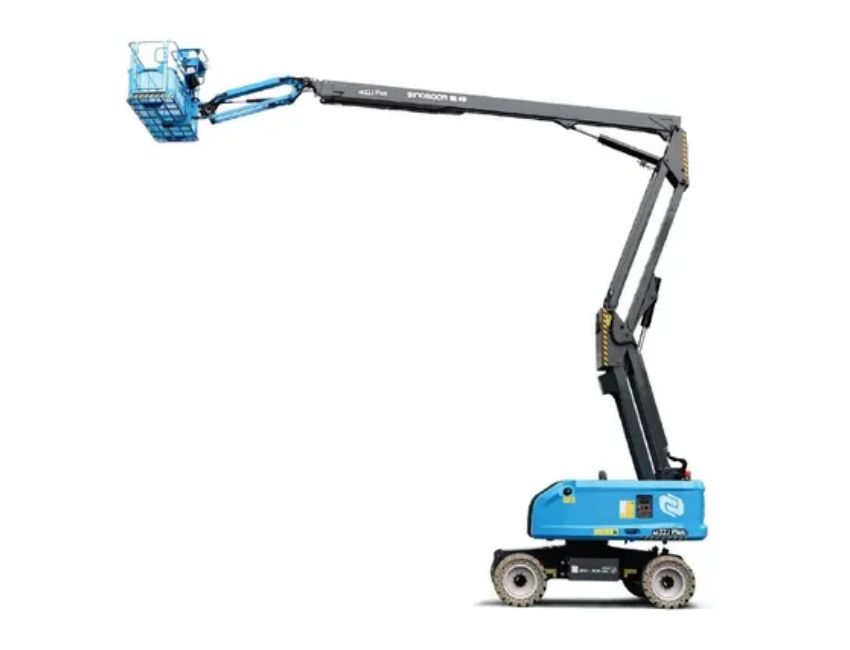

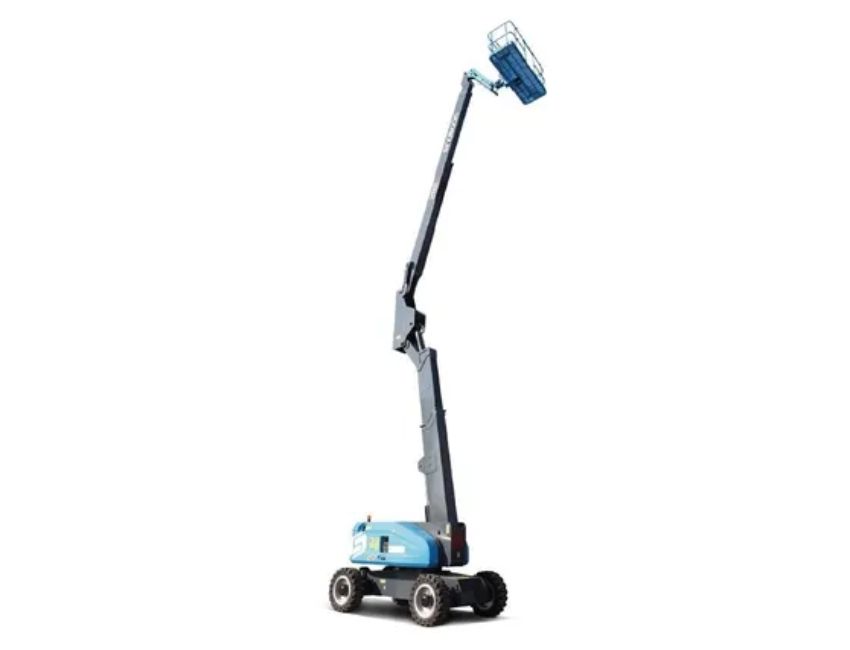

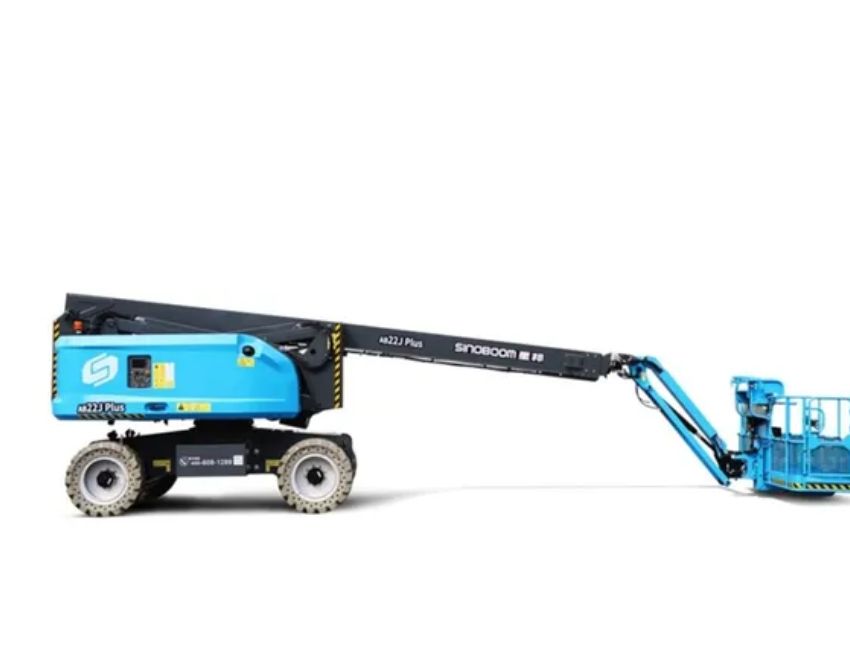

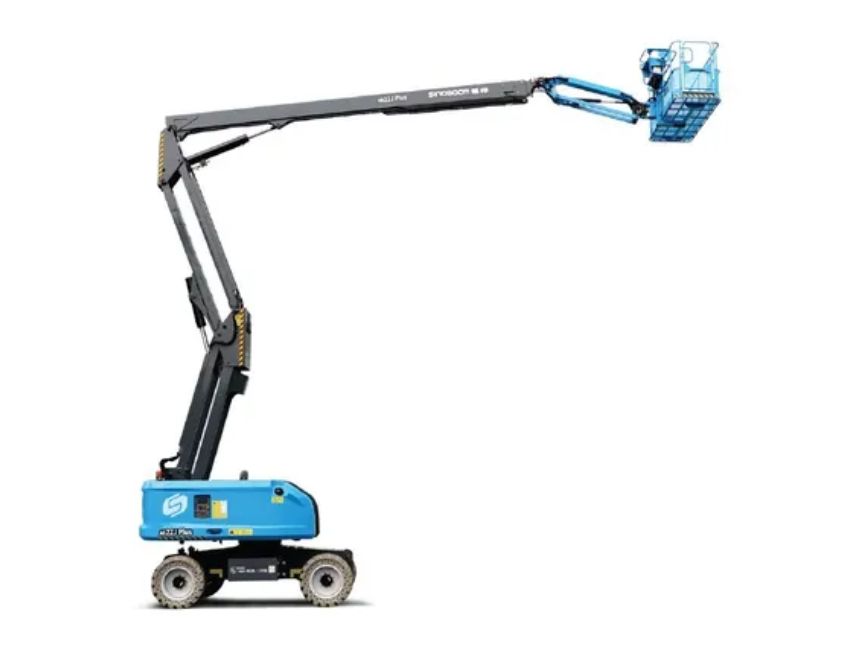

Sinoboom AB22J Plus – Smart Engineering, Heavy-Duty Power
With 454kg capacity and intelligent load control, the AB22J Plus thrives in outdoor and industrial use. Its 40% climbing ability, active oscillation, and 360° turntable guarantee top-tier maneuverability and safety.

Highlights:

• Heavy-Duty Capability

• Adaptable Performance

• Advanced Safety Systems

Technical specification:

Reference Number- AMH268

Working hours- 0 hrs

Operating weight (kg)- 12,000 Kg

Engine Output- 36 kW

Max Number of Operators- 3

Working Height- 23.6 m

Platform Capacity- 454 kg

Telematics- Available

Max Horizontal Extension- 13.35 m

Power- Diesel

Drive × Steer- 4WD x 2WS (4WS）

Turntable Rotation- 360°/Continuous

Gradeability- 40%

Features:

• Tilt protection system with a max allowable tilt angle of 5°

• Hydraulic leveling and emergency stop/lowering systems

• Rear position confirmation

• Rotating warning light, horn, and buzzer for safety

• Fault diagnosis system

• Proportional control with 3 joysticks

• Continuous 360° turntable rotation

• Active oscillating function

• Four-wheel steering – four-wheel brake

• Weighing system and automotive sleeves for all pipes

• AC power line to the platform

• 7-in smart screen and voice broadcast
