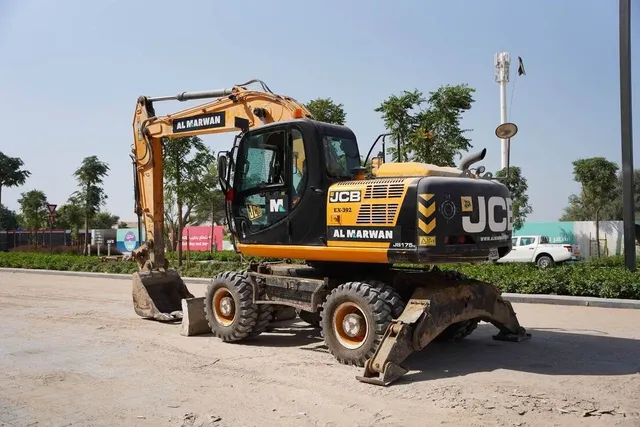

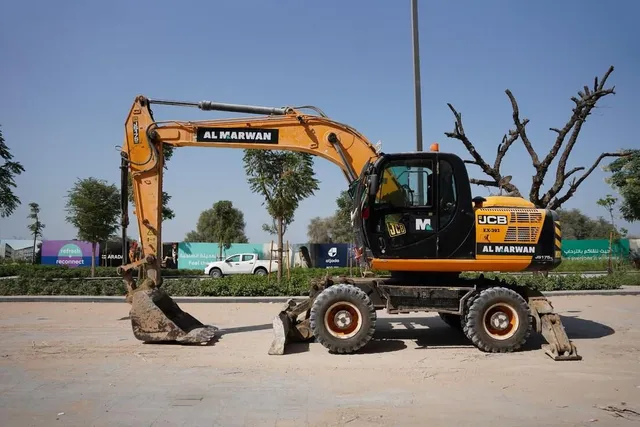

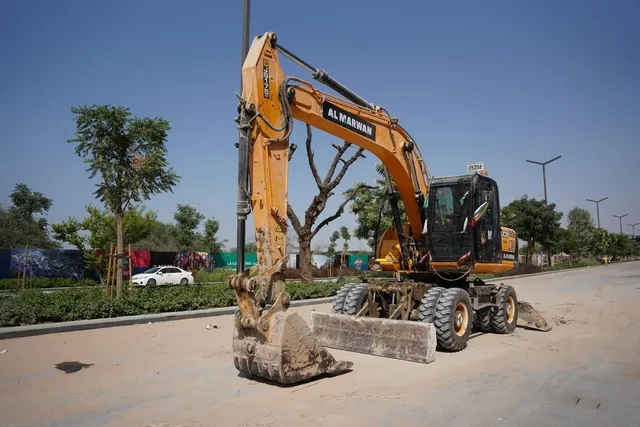

Power and agility are combined in the 2017 JCB JS175WT2, a small wheeled excavator. With 172 horsepower and a design that allows for quick movement between job sites, it performs exceptionally well in situations where mobility and speed are critical, especially for roadside jobs. It is the preferred option for infrastructure work in rural and suburban areas because of its wheeled arrangement, which provides more speed and flexibility than track excavators. No matter where it is used, this machine provides dependability and user-friendliness for digging, lifting, or site preparation.

Highlights

• Optimum Fuel Efficiency
• Faster Cycle Times
• Low Noise Operation

Technical specification

• Reference Number: EX-0392
• Working hours: 13,965 hrs
• Operating weight (kg): 17,200 Kg
• Cab type: ROPS
• Engine Make: JCB
• Engine Model: DIESLMAX 448
• Engine Output: 172 hp
• Fuel Capacity: 310 liters
• Travel Speed: 30 km/h
• Bucket capacity: 0.85 m³
• Max Dig Depth: 6.12 meter
• Max Dump Height: 7.3 meter
• Max Reach: 8.97 meter
• Swing Speed: 11.3 rpm
• Arm Length: 2.7 meter
• Boom Length: 5.15 meter
• Request for Quote +971525384269

Features

• 172 hp JCB DIESLMAX 448, turbocharged diesel engine
• cab equipped with 6 viscous rubber mounts for noise and vibration reduction
• Large laminated glass roof/window for optimal visibility
• Light, intuitive, and smooth controls enhance comfort and productivity
• Joystick power boost button for extra hydraulic power
• Rotary throttle control for easy work mode selection
• Balanced slew and electrohydraulic slew braking for precision
• Open-centered hydraulic system with twin variable flow pumps
• Heavy-duty pin-mounted stowage bar
• Hydraulic braking and automatic disc-type parking brake
