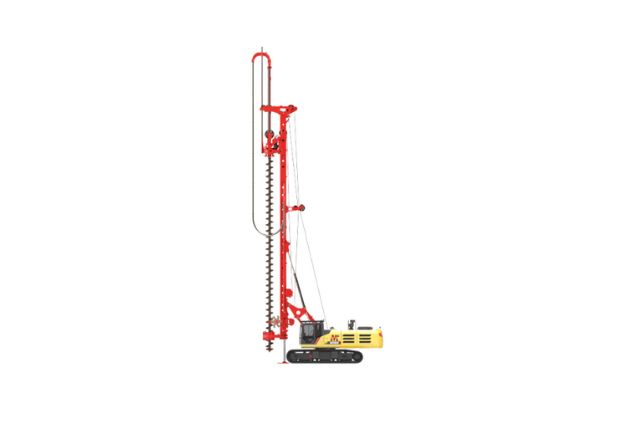

The SANY 2025 SR285R-MIII sets the standard for modern foundation drilling. Advanced rotary drive and long-stroke capabilities allow for maximum penetration and control. A fuel-efficient Tier IV engine powers your productivity while reducing emissions. Drill parameters are easily customized with the rig’s intelligent interface. It’s perfect for high-load, deep drilling applications. Durable, powerful, and built for serious results.

Parameters

Standard Mode

Crowd Force: 260kN

Stroke: 17100mm

Overall Height: 25470mm

Max. Pile Diameter: 2200mm

Max. Pile Depth: 94/61m

Operating Weight: 105T

Line Pull: 355kN

Rated Speed: 5~24rpm

Rated Output Torque: 285kN·m

Main Chassis

Base Engine: 6WG1

Engine Power: 300/1800kW/rpm

Emission Regulation: China Stage III

Overall Machine

Transport Width: 3475mm

Transport Height: 3625mm

Main Winch

Lifting Capacity: 330kN

Max. Line Speed: 70m/min

Rope Diameter: 36mm

Price: AED 311000

Request for quote: +971525384269
