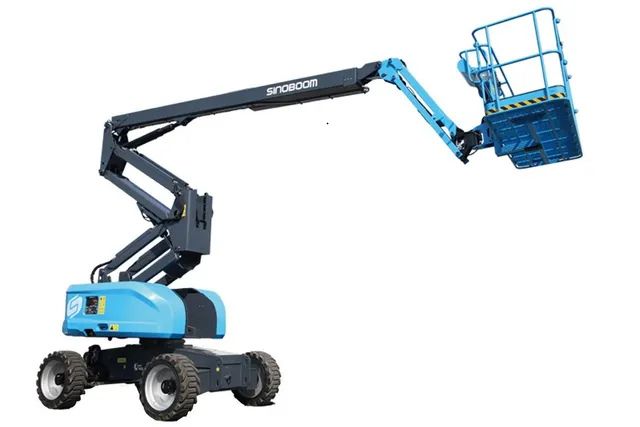

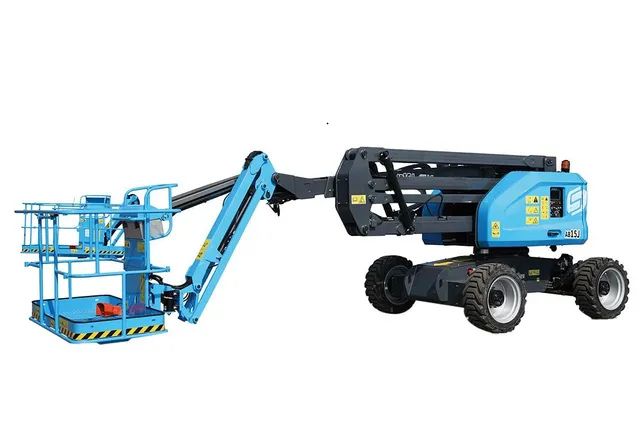

The Sinoboom AB15J articulating boom lift is engineered for high performance and accuracy, delivering a maximum working height of 16.7 meters. Its compact frame and zero tail swing make it ideal for maneuvering in confined or tight areas. The platform can be elevated or lowered independently of the secondary arm, enhancing operational efficiency. A streamlined linkage system paired with hydraulic leveling ensures steady and reliable function. With three variable proportional control joysticks, operators can expect smooth and precise control. Built for both indoor and outdoor applications, the AB15J is a trusted solution for construction, maintenance, and facility-related tasks.
Highlights
- Ultra-Compact Wheelbase for Tight Spaces
- Fast, Responsive Height Adjustments
- Reliable for Continuous Lifting Operations
Technical specification
Reference Number: AMH209
Operating weight (kg): 7,080 Kg
Engine Output: 36 kW
Max Number of Operators: 2
Working Height: 16.7 m
Platform Capacity: 250 kg
Max Horizontal Extension: 8.5 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 355°/Non-Continuous
Platform Rotation: 160°
Gradeability: 40%
Features
- Narrow width with zero tail sweep
- Oscillating function
- 7-in display screen
- 4WD× 2WS
- Proportional control with 3 joysticks
- Automotive-grade sleeves for all pipes
- Hydraulic platform leveling
- Weighing system
Price: AED 203000
Request for quote: +971525384269
Features:
- Tilt protection system Max tilt rating to 5°
- Emergency stop/lowering system
- Telematics-ready connector
- Non-marking tires foam-filled / solid
- AC power to platform
