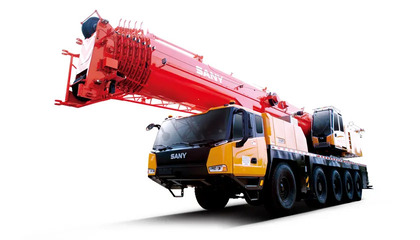

Features.

Chassis for All Terrain
Better suspension and all-wheel steering make its compact chassis suitable for a variety of task areas.

More Adaptability
varying combinations of counterweights and jib arrangements. We constantly offer the most affordable option for various lifting tasks.
Effective Performance
Boom combinations can be changed for different builds using the single-cylinder pin system.
Traveling with a Counterweight
Less transport trailers are needed because the cranes can move with counterweight at construction sites.

Parameters

Operation

Counterweight – 42T

Max. Lifting Capacity – 130T

Max. Boom Length – 74.8m

Max. Jib Length – 26m

Max. Lifting Height – 95.5m

Max. Lifting Moment – 4685kN·m

Traveling

Available Districts – Outside Europe & USA

Engine Model (Emission Standard) – Benz OM460LA.E3A

Max. Gradeability – 46%

Max. Traveling Speed – 80km/h

Wheel Formula – 10×6×10

Request for quote: +971525384269

Price: AED1557000
