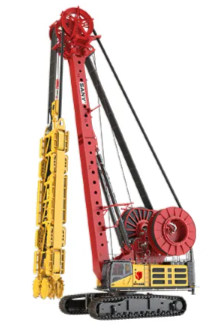

Designed for deep trench operations, the SANY SDC120 Trench Cutter’s pump and air-combined discharge system quickly clears slag, preventing pipe blockages and boosting excavation speed. The mud capstan automatically aligns with the pipe inlet, reducing wear and tear while extending service life. With its powerful thrust system and adaptive controls, it meets the most demanding geological conditions.

Parameters

• Engine Power- 570.5/1800kW/rpm
• Grooving Depth of Single Hole- 2800mm
• Grooving Thickness- 800 – 1800mm
• Max. Grooving Depth- 120m
• Max. Speed of Milling Wheel- 25rpm
• Milling Wheel Gearbox Torque- 2×120kN·m
• Mud Pump- 450m³/h
• Number of Deviation Correction Devices- 12
• Overall Quality- 230T
• Winch Lifting Force- 2×390kN

Price: 365000 AED
