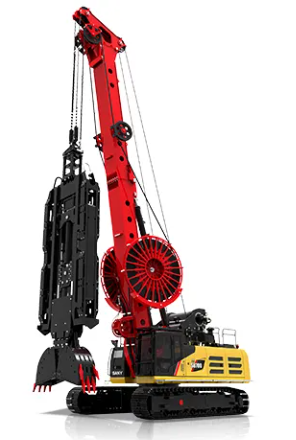

Perfect for tough rock layers, the SANY SR235-S-DW Kelly Guided Grab’s working device provides a large weight and superior impact force, handling strata with pressures up to 10MPa. The bucket opens and closes in just 9 seconds, increasing soil and slag management efficiency. Equipped with a synchronous winch system, it operates at peak speeds. Real-time gyroscope detection adjusts the gantry push plate alignment instantly, achieving perpendicular grooves within 1‰ accuracy for enhanced construction quality.

Parameters

Main Chassis

• Base Engine- 6UZ1
• Engine Power- 257/2000kW/rpm
• Emission Regulation- China Stage III

Slot

• Groove Width- 500-1200mm
• Groove Depth- 35m

Overall Machine

• Overall Height- 22870mm
• Operating Weight- 83T
• Transport Width- 3540mm
• Transport Height- 3660mm

Working Equipment

• Max. Closing Force- 128T
• Weight- 2.5-9T
• Open & Close Bucket Time- 5/8S

Main Winch

• Lifting Capacity- 235kN
• Max. Line Speed- 32m/min
• Wire Rope Diameter- 70mm

Price: 2201000 AED

For More Information

Call us on: +971 525384269
