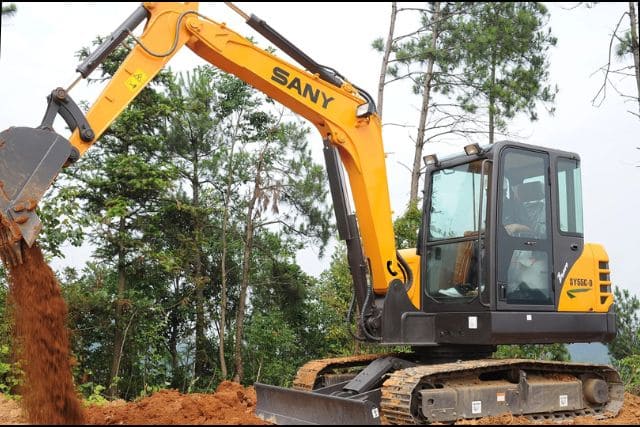

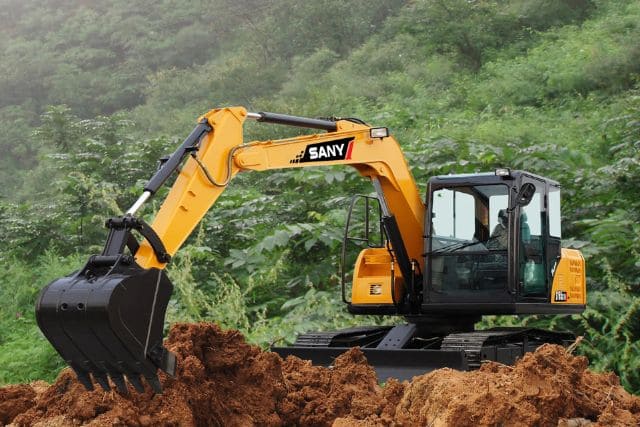

The 2025 SANY SY55C is a 5.78-ton class mini crawler excavator powered by an Isuzu 4JG1 engine delivering 36 kW at 2,100 rpm. It features a 0.21 m³ bucket capacity, 3-meter boom, and 1.55-meter arm. With a bucket digging force of 45 kN and arm digging force of 33 kN, it offers robust performance for various excavation tasks. The machine is equipped with a 130L fuel tank and an 85L hydraulic tank, ensuring extended operational capacity.

Technical specification

• Arm Digging Force: 33kN
• Bucket Capacity: 0.21m³
• Bucket Digging Force: 45kN
• Carrier Wheel on Each Side: 1
• Engine Displacement: 3.059L
• Engine Model: Isuzu 4JG1
• Engine Power: 36kW
• Fuel Tank: 130L
• Hydraulic Tank: 85L
• Operating Weight: 5.78T
• Radiator: 6.5L
• Standard Boom: 3m
• Standard Stick: 1.55m
• Thrust Wheel on Each Side: 5
