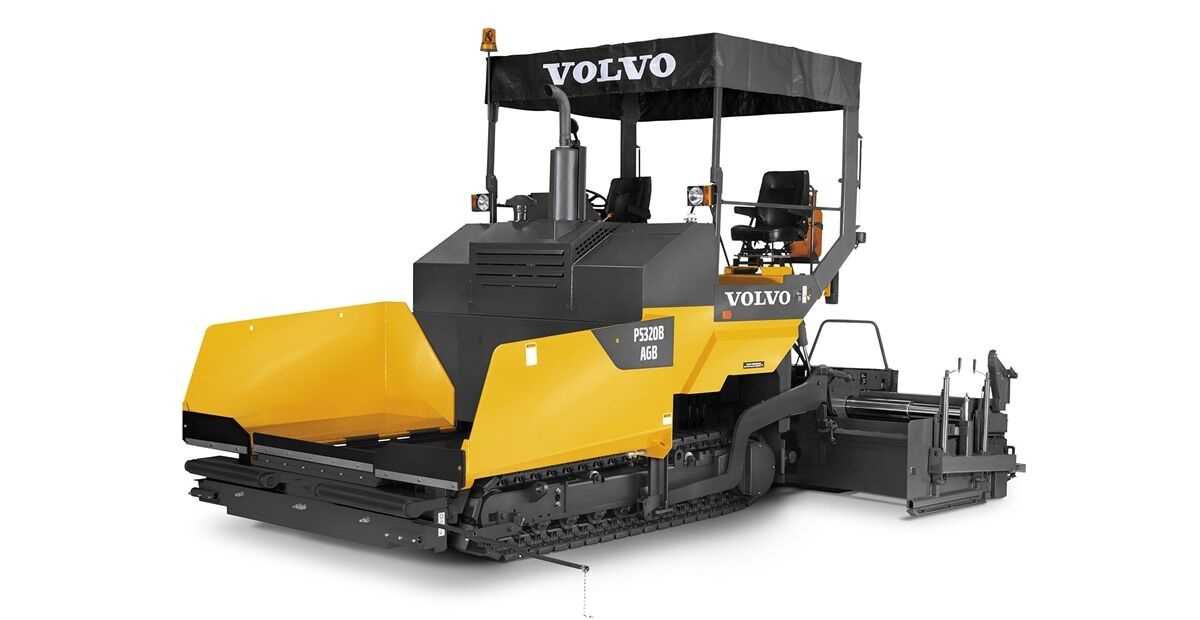

Designed for high productivity, the Volvo P5320B ABG Track Paver features a 12-ton hopper and conveyor speed of 26 m/min. Its 360 mm auger operates at 83 rpm, providing smooth, even output. Maintained at our cutting-edge Al Marwan facility, it guarantees exceptional performance and reliability on every job.

Technical specification
Reference Number: AS-0053
Working hours: 1,287 hrs
Operating weight (kg) :11,700 Kg
Country of Origin: India
Cab type: Foldable Canopy
Engine Make: Volvo
Engine Model: D5
Engine Output: 118 HP
Fuel Capacity: 230 liters
Travel Speed: 3.2 km/h
Working Width: 4.75 m
Hopper Capacity: 12 ton
EPA: Certified
Emissions: EPA Tier III

Features

13 mm Heavy duty push rollers
12 ton capacity large folding hopper wings
Sliding control panel
Electronic drive control
Automatic conveyor and auger control
360 mm diameter independent auger drive
Adjustable height and reversing auger
118 HP Volvo D5 diesel engine
2.5m to 4.75m hydraulically extendable screed
20kVA Generator for Electrical heating of main and screed extensions
17 m/min Paving speed
Max laydown rate 600 t/h

Price: AED 469700

Request for quote: +971525384269
