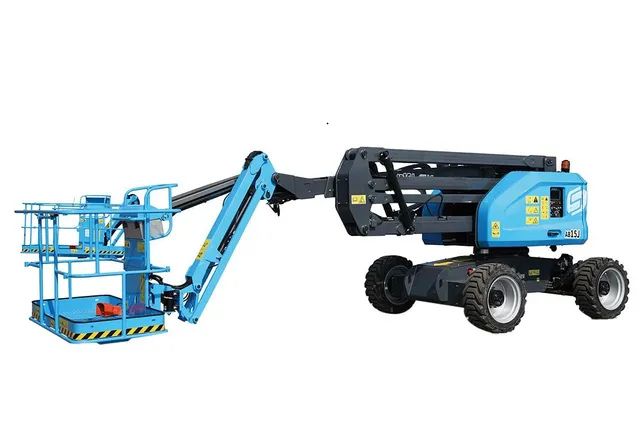

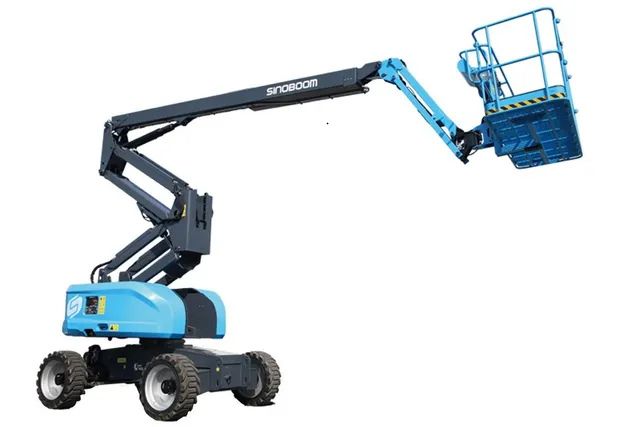

The Sinoboom AB15J is an engine-powered articulating boom lift crafted for accuracy and operational efficiency, capable of reaching a working height of 16.7 meters. Its slim design and zero tail swing make it perfect for maneuvering in confined or restricted areas. The platform can move vertically without the need to reposition the secondary arm, allowing smoother operation. A simplified linkage structure and hydraulic leveling system contribute to its dependable performance. Featuring three joysticks with variable proportional controls, the AB15J offers smooth, precise handling for indoor and outdoor use, making it a reliable choice for construction, maintenance, and facility work.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
