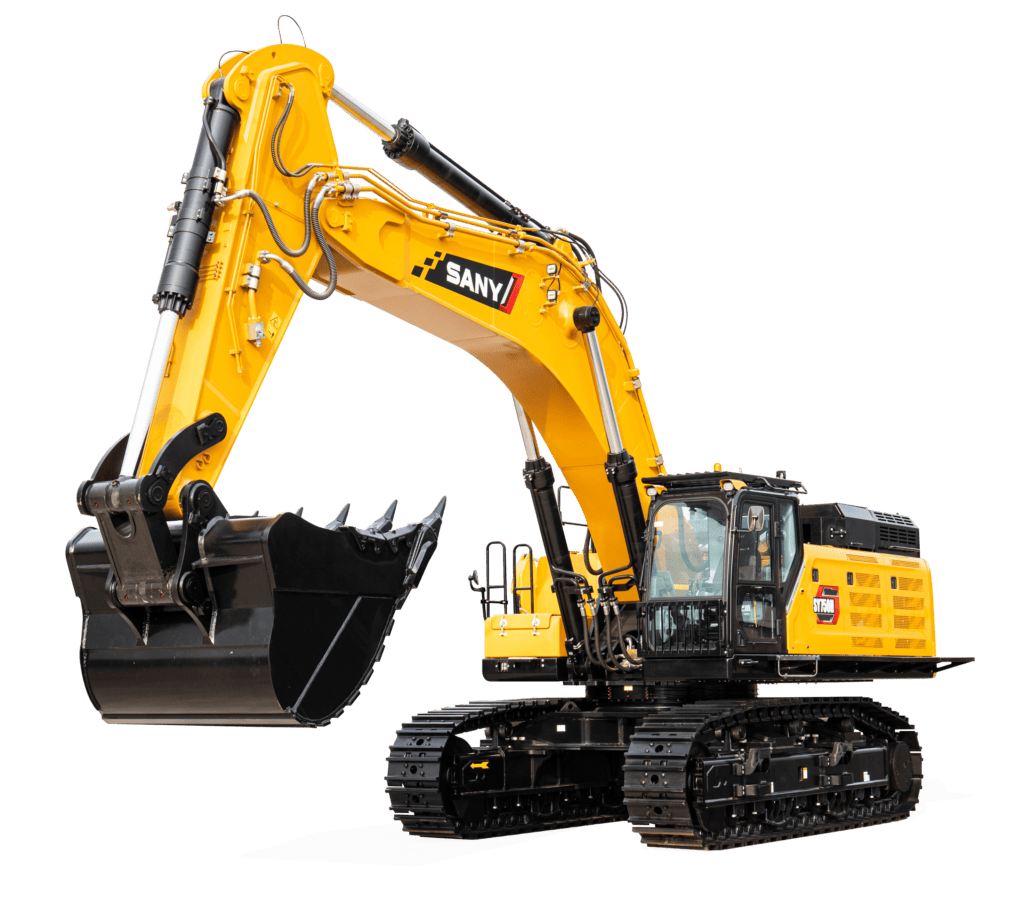

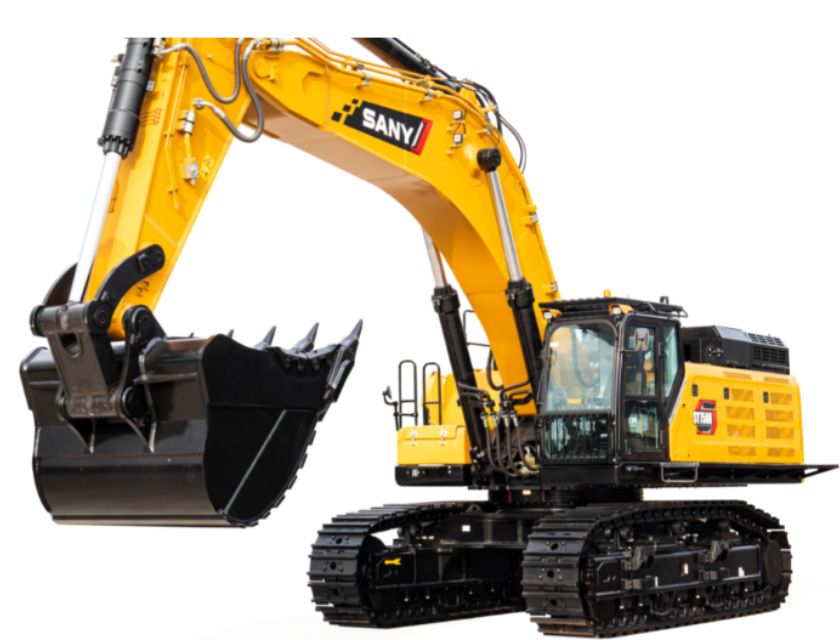

The SANY SY750H is a 2025-model large excavator designed for maximum operational efficiency and durability. Equipped with a powerful Cummins Stage V engine, the SY750H offers an operating weight of approximately 75 tons and a bucket capacity ranging from 4.2 to 5.0 m³. Advanced hydraulic technology ensures precise control, while reinforced undercarriage and boom structures provide long-lasting performance in extreme conditions.

Parameters

• Arm Digging Force: 345kN
• Bucket Capacity: 4.6m³
• Bucket Digging Force: 402kN
• Carrier Wheel on Each Side: 3
• Engine Displacement: 15.681L
• Engine Model: Isuzu 6WG1
• Engine Power: 377kW
• Fuel Tank: 940L
• Hydraulic Tank: 700L
• Operating Weight: 76.2T
• Radiator: 70L
• Standard Boom: 7m
• Standard Stick: 3m
• Thrust Wheel on Each Side: 8
